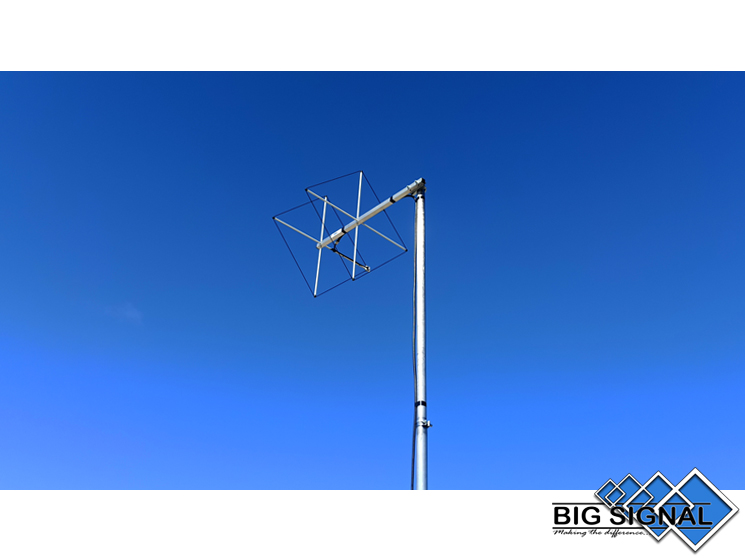

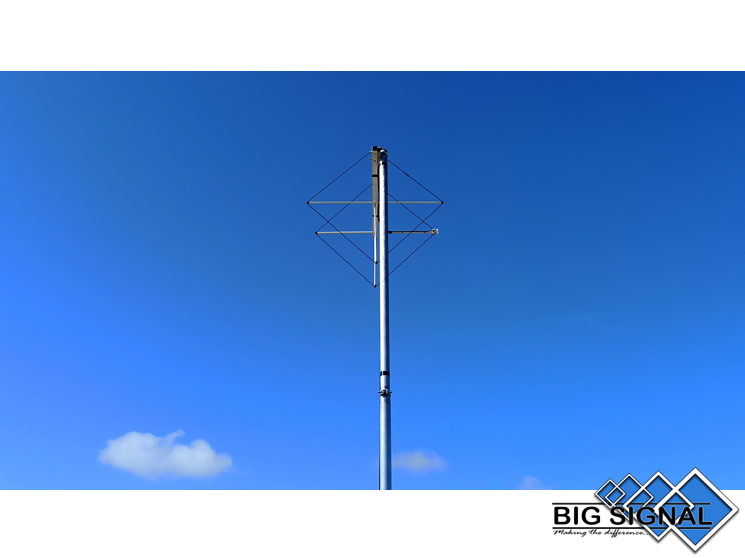

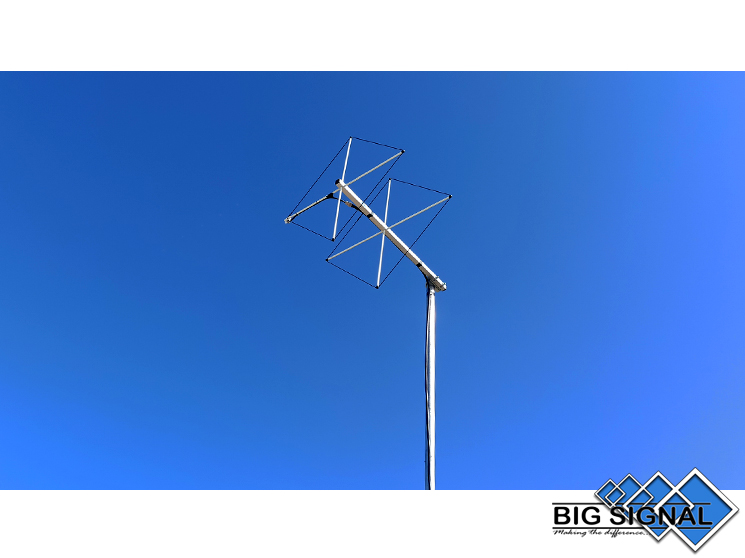

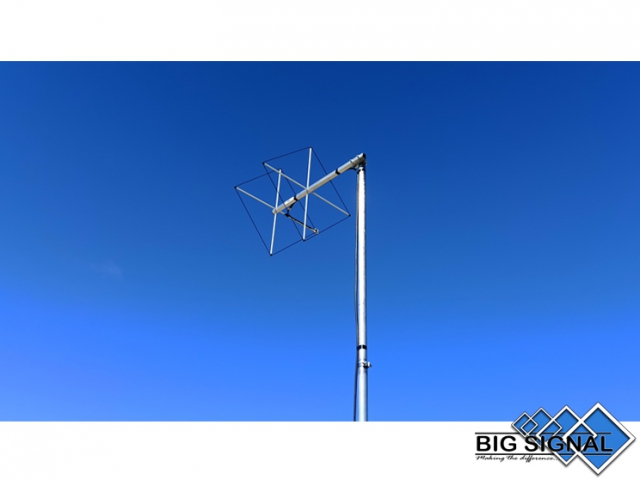

BIG SIGNAL 2BS-2
2-Element Directional Quad Antenna for 144 MHz
The BIG SIGNAL 2BS-2 is a 2-element full-wave directional Quad antenna for VHF / 144 MHz, designed to provide an excellent combination of gain, directivity, and portability.
Compact, lightweight, and quick to deploy, it is especially well suited for portable operation, SOTA activations, terrestrial DX, and amateur satellite communications, in both FM and weak-signal modes.
Band: VHF / 144 MHz
Configuration: 2-element Quad
Elements: Full-wave closed loops
Type: Monoband directional antenna
Setup: Quick and easy
Recommended use: Portable / SOTA / DX / Satellites
Configuration: 2-element Quad
Elements: Full-wave closed loops
Type: Monoband directional antenna
Setup: Quick and easy
Recommended use: Portable / SOTA / DX / Satellites
What Makes the 2BS-2 Different?
• Two Full-Wave Quad Elements
The 2BS-2 uses two full-wave closed loops — a reflector and a driven element — specifically optimized for the 144 MHz band.
The 2BS-2 uses two full-wave closed loops — a reflector and a driven element — specifically optimized for the 144 MHz band.
• Gain and Directivity in a Compact Package
Its Quad geometry provides strong directional performance with only two elements, delivering an excellent balance of size, gain, and efficiency.
Its Quad geometry provides strong directional performance with only two elements, delivering an excellent balance of size, gain, and efficiency.
• Excellent Signal-to-Noise Performance
Its directivity and off-axis rejection help reduce unwanted signals and interference arriving from other directions, making it easier to copy weak VHF signals.
Its directivity and off-axis rejection help reduce unwanted signals and interference arriving from other directions, making it easier to copy weak VHF signals.

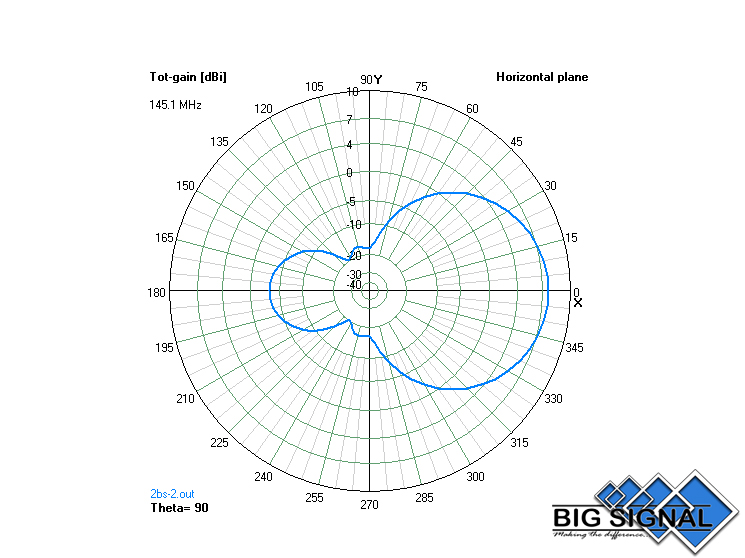

• Directional Radiation Pattern
The combination of driven element and reflector focuses radiation toward the desired direction while improving rear rejection, an important advantage for DX and weak-signal communications.
The combination of driven element and reflector focuses radiation toward the desired direction while improving rear rejection, an important advantage for DX and weak-signal communications.
• Designed to Get You on the Air in Minutes
Its portable design allows for quick deployment, making it a practical choice for field operation, activations, and temporary installations.
Its portable design allows for quick deployment, making it a practical choice for field operation, activations, and temporary installations.
Directional Performance You Can Take Anywhere
The 2BS-2 is designed for operators who want the benefits of a full-wave directional antenna without hauling a large, heavy structure. Set it up, point it, and get on the air.
One Antenna, Multiple Ways to Enjoy VHF
• Terrestrial DX
Its gain and directivity allow you to focus your signal toward distant stations and take advantage of propagation openings on 144 MHz.
Its gain and directivity allow you to focus your signal toward distant stations and take advantage of propagation openings on 144 MHz.

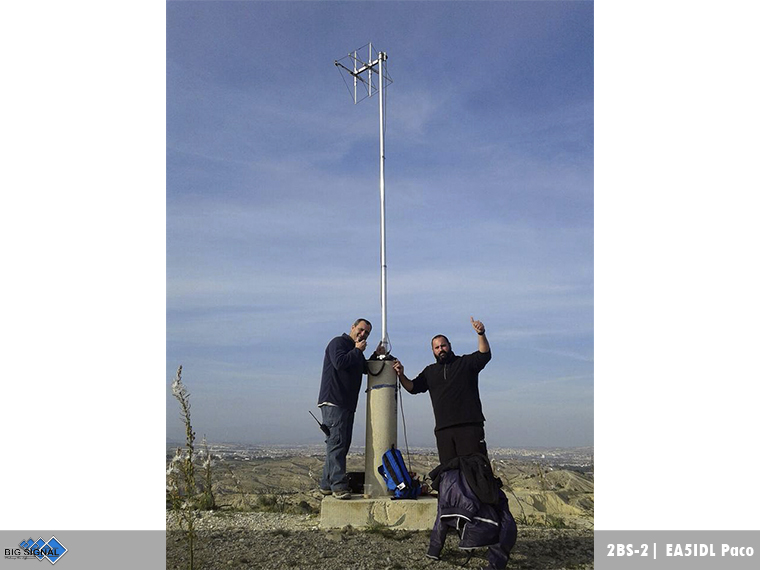

• SOTA and Portable Operation
A compact configuration for operators who need to minimize carried gear without giving up the advantages of a directional antenna.
A compact configuration for operators who need to minimize carried gear without giving up the advantages of a directional antenna.
• Amateur Satellite Communications
The 2BS-2 can be used as a directional 144 MHz antenna as part of a station configured for amateur satellite operation.
The 2BS-2 can be used as a directional 144 MHz antenna as part of a station configured for amateur satellite operation.
Why Choose a Quad Antenna?
While a conventional Yagi typically uses open elements approximately one-half wavelength long, the 2BS-2 uses full-wave closed-loop elements.
It is a different design approach that provides an especially attractive combination of efficiency, directivity, gain, and compact size — ideal when you want strong performance without turning a portable operation into a permanent antenna installation.
Two Elements. Full Wave. Ready to Go.
The BIG SIGNAL 2BS-2 brings the Cubical Quad concept into a compact, portable format for operators who want more directivity and stronger performance on 144 MHz without carrying a large antenna.
BIG SIGNAL – Less Noise. More Signal.
Technical Specifications
Band: VHF / 145 MHz
Elements: 2
Gain: 7.8 dBi (free space)
Front-to-Back Ratio (F/B): 10.08 dB
Beamwidth: 74°
SWR: 1.1:1 – 1.5:1
Impedance: 50 Ω
Maximum Power: 5,000 W PEP
Boom Length: 0.40 m (1.31 ft)
Turning Radius: 0.40 m (1.31 ft)
Overall Height: 0.60 m (1.97 ft)
Weight: approximately 600 g (1.32 lb)
Wind Resistance: > 200 km/h (> 124 mph)
Wind Load: 0.042 m² (0.45 ft²) | 32.97 N (7.41 lbf) | @ 120 km/h (74.6 mph)
Elements: 2
Gain: 7.8 dBi (free space)
Front-to-Back Ratio (F/B): 10.08 dB
Beamwidth: 74°
SWR: 1.1:1 – 1.5:1
Impedance: 50 Ω
Maximum Power: 5,000 W PEP
Boom Length: 0.40 m (1.31 ft)
Turning Radius: 0.40 m (1.31 ft)
Overall Height: 0.60 m (1.97 ft)
Weight: approximately 600 g (1.32 lb)
Wind Resistance: > 200 km/h (> 124 mph)
Wind Load: 0.042 m² (0.45 ft²) | 32.97 N (7.41 lbf) | @ 120 km/h (74.6 mph)
Compact and Lightweight
• Boom: only 40 cm (15.75 in)
• Turning Radius: 40 cm (15.75 in)
• Weight: approximately 600 g (1.32 lb)
• Gain: 7.8 dBi
• Maximum Power: 5,000 W PEP
• Turning Radius: 40 cm (15.75 in)
• Weight: approximately 600 g (1.32 lb)
• Gain: 7.8 dBi
• Maximum Power: 5,000 W PEP
7.8 dBi with Only a 40 cm (15.75 in) Boom
The combination of 2 full-wave Quad elements, a boom measuring only 40 cm (15.75 in), and an approximate weight of just 600 g (1.32 lb) delivers an excellent balance of gain, compact size, and portability.
Construction and Materials
• Mast Mount
Clamp mounting system compatible with masts up to 60 mm (2.36 in) in diameter.
Clamp mounting system compatible with masts up to 60 mm (2.36 in) in diameter.
• Boom
Square profile measuring 25 × 2 mm (0.98 × 0.08 in), designed to provide a rigid yet lightweight structure.
Square profile measuring 25 × 2 mm (0.98 × 0.08 in), designed to provide a rigid yet lightweight structure.
• Hardware and Fasteners
Made from W4 stainless steel for high mechanical strength, corrosion resistance, and long-term outdoor durability.
Made from W4 stainless steel for high mechanical strength, corrosion resistance, and long-term outdoor durability.
• Fiberglass Support System
Reinforced fiberglass tubing measuring 8 × 4 mm (0.31 × 0.16 in) with a UV-protective coating for long-term outdoor use.
Reinforced fiberglass tubing measuring 8 × 4 mm (0.31 × 0.16 in) with a UV-protective coating for long-term outdoor use.
• BIG SIGNAL Wire
Special copper wire with a polyethylene (PE) jacket, selected to provide excellent weather protection and high mechanical strength for outdoor installations.
Special copper wire with a polyethylene (PE) jacket, selected to provide excellent weather protection and high mechanical strength for outdoor installations.
• RF Feed Connection
Equipped with an N female connector.
Equipped with an N female connector.
Reviews
Write your review
The purchase of the products is always made on request. We manufacture all products, so manufacturing times can be added. That is why the final price of the purchase, as the final price of the shipping costs will be confirmed in an email sent afterwards.
The form of payment will be made once the email is received, so at all times you can cancel the order informing us of the process.
Una antena de la que puedes decir "...si no lo veo, no me lo creo..." después de haberla puesto a prueba en diferentes localizaciones, puedo manifestar que tiene un desempeño fantástico y con un ruido muy muy bajo.
Fácil de transportar y más fácil de montar. Con respecto al montaje, recomendaría a BigSignal que revise la sujeción del director con el coaxial porque los tornillos son ridículamente pequeños y muy débiles; se me antoja pensar que en pocas jornadas de montaje y desmontaje en salidas portables ese punto de sujeción saltará inevitablemente. Con el resto de la construcción, nada que decir porque lo he podido ver suficientemente resistente, pero sin llegar a ser material que no se deteriore en pocos meses, sabiendo que esta antena se publicita como herramienta para salidas portables / QRP donde precisamente el número de montajes y desmontajes marcará seguramente la fecha de rotura de la 2BS-2.
En definitiva, que la 2BS-2 es una muy buena antena monobanda VHF y que está por encima de muchas antenas verticales y Yagui que actualmente están con precios superiores. Si BigSignal corrige el diseño de sujeción del coaxial con el elemento director para evitar roturas tempranas, sin lugar a dudas estaríamos delante de una de las mejores antenas VHF del mercado para ámbito portable y activaciones.
I'm impressed with the antenna. I have a vertical 2 x 5/8? antenna, and although it has a different purpose, the BIG SIGNAL 2BS-2 is significantly quieter and very effective. I recommend the manufacturer. Thank you for the fast shipping, quality product, and support.
Excelente solución portable para llevar en la mochila en las salidas al campo junto al equipo QRP, antena fácil de montar y ligera. Además para emplear en las actividades de la Remer.
La comunicación con el equipo de Big Signal es fluida aclarando dudas y aconsejando antenas según las necesidades del operador.
