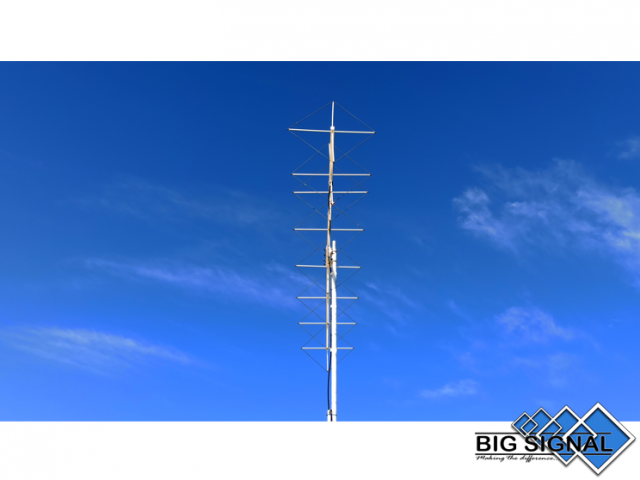

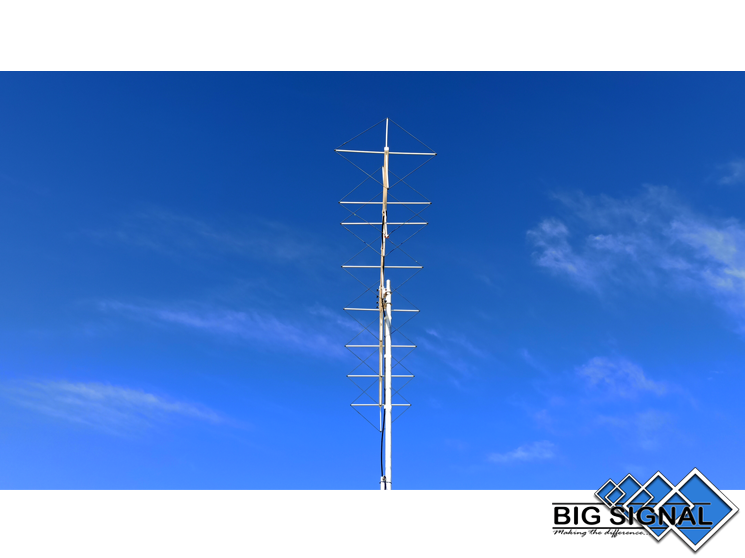

BIG SIGNAL 8BS-2

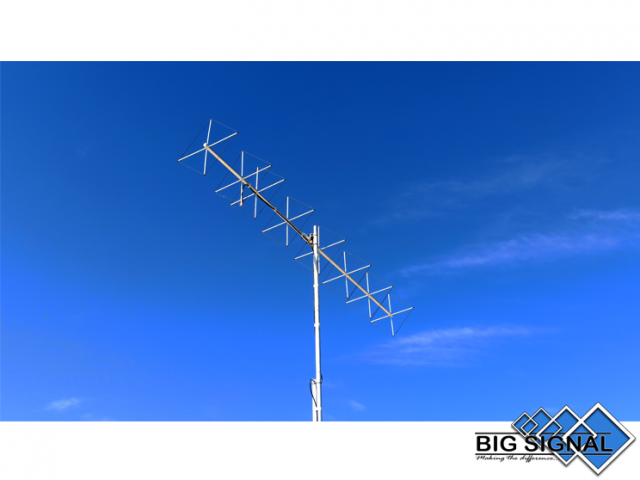

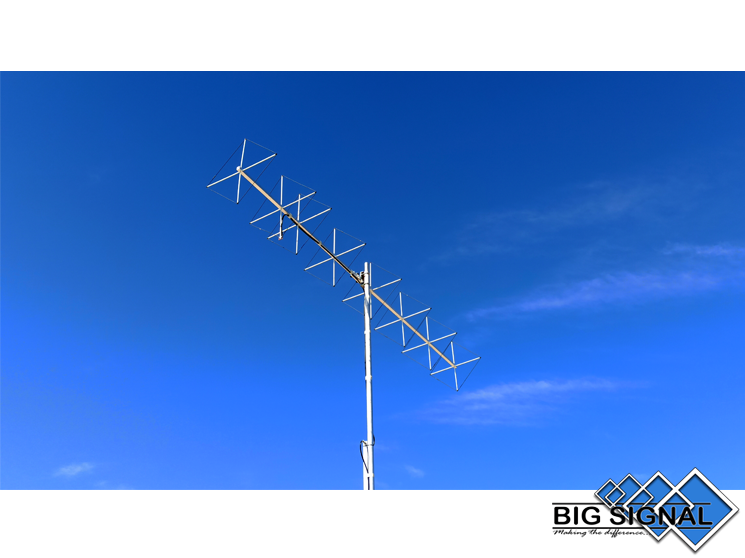

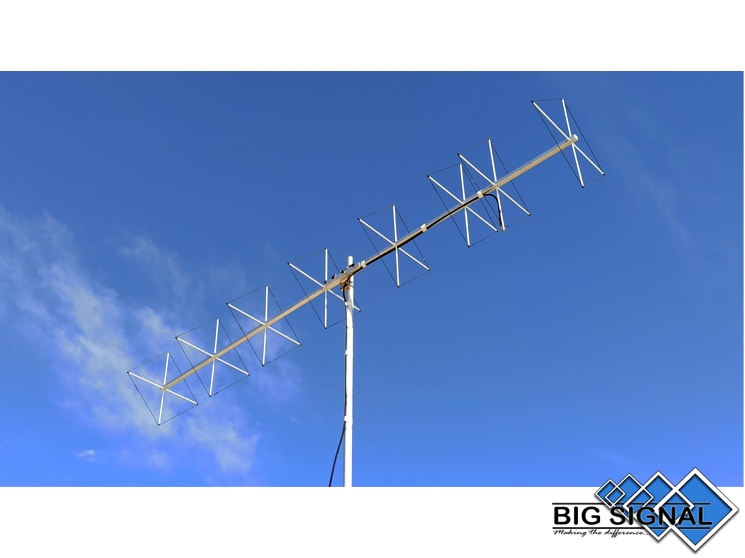

8-Element Cubical Quad Antenna for High-Performance 144 MHz Operation
The BIG SIGNAL 8BS-2 is an 8-element directional Cubical Quad antenna developed for operators looking to take gain, directivity, and weak-signal reception to the next level on the 144 MHz / 2-meter band.
Its design uses full-wave loop elements and is especially suited to terrestrial DX, SSB, digital modes, and weak-signal communications, where every dB and a good signal-to-noise ratio can make the difference.
Band: 144 MHz / 2 m
Type: Single-band directional Cubical Quad
Elements: 8 full-wave elements
Design: Long-spacing configuration
Applications: DX / weak signals / SSB / digital modes
Assembly: Pre-assembled elements
Type: Single-band directional Cubical Quad
Elements: 8 full-wave elements
Design: Long-spacing configuration
Applications: DX / weak signals / SSB / digital modes
Assembly: Pre-assembled elements
Why Choose the BIG SIGNAL 8BS-2?
• 8 Full-Wave Loop Elements
Unlike conventional Yagi configurations based on elements approximately half a wavelength long, the 8BS-2 uses full-wave closed-loop elements, one of the fundamental characteristics of the Cubical Quad design.
Unlike conventional Yagi configurations based on elements approximately half a wavelength long, the 8BS-2 uses full-wave closed-loop elements, one of the fundamental characteristics of the Cubical Quad design.
• High Gain with an Optimized Structure
Its 8-element long-spacing configuration is designed to provide high directional performance, making it an especially interesting alternative to Yagi antennas offering comparable performance.
Its 8-element long-spacing configuration is designed to provide high directional performance, making it an especially interesting alternative to Yagi antennas offering comparable performance.
• Excellent Signal-to-Noise Ratio
The closed-loop geometry of its elements can contribute to cleaner reception in the presence of certain types of electrical noise, an especially valuable advantage when working with signals close to the reception threshold.
The closed-loop geometry of its elements can contribute to cleaner reception in the presence of certain types of electrical noise, an especially valuable advantage when working with signals close to the reception threshold.
• High Directivity and Selectivity

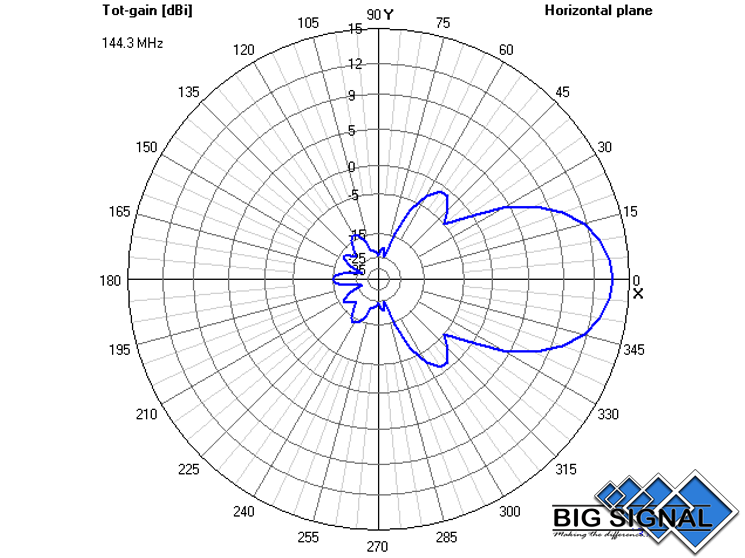

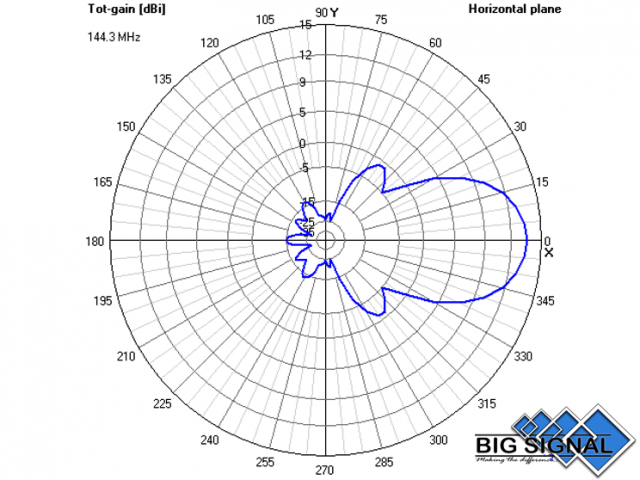

Its radiation pattern is designed to concentrate the signal in the desired direction while providing good suppression of signals arriving from unwanted directions, helping improve reception in demanding RF environments.
Its radiation pattern is designed to concentrate the signal in the desired direction while providing good suppression of signals arriving from unwanted directions, helping improve reception in demanding RF environments.
• Good Performance with Polarization Variations
The Cubical Quad geometry can reduce the impact of certain variations in the polarization of received signals, contributing to greater reception stability under changing propagation conditions.
The Cubical Quad geometry can reduce the impact of certain variations in the polarization of received signals, contributing to greater reception stability under changing propagation conditions.
• Quick and Easy Assembly
Its pre-assembled elements simplify the installation process, reducing assembly time and allowing the antenna to be prepared for operation quickly.
Its pre-assembled elements simplify the installation process, reducing assembly time and allowing the antenna to be prepared for operation quickly.
Designed for Weak-Signal VHF Operation
On 144 MHz, gain is important, but so are a good signal-to-noise ratio and a selective radiation pattern. The 8BS-2 combines these characteristics in an antenna designed for operators who want to make the most of the possibilities offered by the 2-meter band.
• 8 full-wave elements.
• High directional performance on 144 MHz.
• Excellent signal-to-noise ratio.
• High directivity and selectivity.
• Especially suited to DX and weak-signal operation.
• Construction designed for demanding permanent outdoor installations.
• High directional performance on 144 MHz.
• Excellent signal-to-noise ratio.
• High directivity and selectivity.
• Especially suited to DX and weak-signal operation.
• Construction designed for demanding permanent outdoor installations.
More Elements. More Directivity. More Possibilities on 144 MHz.
BIG SIGNAL 8BS-2 – an 8-element directional Cubical Quad designed for operators looking for gain, selectivity, and weak-signal reception on the 2-meter band.
Technical Specifications
Band: 144 MHz / 2-Meter Band
Elements: 8 (long-spacing configuration)
Gain: 13.62 dBi (Free Space)
F/B Ratio: 23.35 dB
SWR: 1.1:1 – 1.5:1
Impedance: 50 Ω
Maximum Power: 5,000 W PEP
Boom Length: 3.60 m / 11.81 ft
Turning Radius: 1.83 m / 6.00 ft
Total Height: 0.73 m / 2.40 ft
Weight: 4 kg / 8.82 lb
Wind Survival: > 200 km/h / 124 mph
Wind Load: 0.218 m² / 2.35 ft² | 171.13 N / 38.47 lbf | @ 120 km/h / 74.6 mph
Elements: 8 (long-spacing configuration)
Gain: 13.62 dBi (Free Space)
F/B Ratio: 23.35 dB
SWR: 1.1:1 – 1.5:1
Impedance: 50 Ω
Maximum Power: 5,000 W PEP
Boom Length: 3.60 m / 11.81 ft
Turning Radius: 1.83 m / 6.00 ft
Total Height: 0.73 m / 2.40 ft
Weight: 4 kg / 8.82 lb
Wind Survival: > 200 km/h / 124 mph
Wind Load: 0.218 m² / 2.35 ft² | 171.13 N / 38.47 lbf | @ 120 km/h / 74.6 mph
Construction & Materials
• Boom-to-Mast Plate
Heavy-duty 150 × 100 × 6 mm / 5.91 × 3.94 × 0.24 in mounting plate, dimensioned to provide a solid and secure connection between the antenna assembly and the mast system.
Heavy-duty 150 × 100 × 6 mm / 5.91 × 3.94 × 0.24 in mounting plate, dimensioned to provide a solid and secure connection between the antenna assembly and the mast system.
• Boom
Square 30 × 2 mm / 1.18 × 0.08 in tubing, selected to provide an excellent balance between structural rigidity and low overall weight.
Square 30 × 2 mm / 1.18 × 0.08 in tubing, selected to provide an excellent balance between structural rigidity and low overall weight.
• Hardware
Made from W4-grade stainless steel, providing excellent corrosion resistance, mechanical strength, and long-term durability in outdoor installations.
Made from W4-grade stainless steel, providing excellent corrosion resistance, mechanical strength, and long-term durability in outdoor installations.
• Fiberglass System
8 × 4 mm / 0.31 × 0.16 in reinforced fiberglass tubing with a UV-protective coating to improve resistance against prolonged sun exposure and outdoor weather conditions.
8 × 4 mm / 0.31 × 0.16 in reinforced fiberglass tubing with a UV-protective coating to improve resistance against prolonged sun exposure and outdoor weather conditions.
• BIG SIGNAL Wire
Special copper wire with a polyethylene (PE) jacket, designed to provide excellent weather protection and high mechanical durability for long-term outdoor installations.
Special copper wire with a polyethylene (PE) jacket, designed to provide excellent weather protection and high mechanical durability for long-term outdoor installations.
• Design & Optimization
Designed and optimized by EA1DDO Máximo.
Designed and optimized by EA1DDO Máximo.
• RF Feed
Direct terminals for connection to 50 Ω coaxial cable.
Direct terminals for connection to 50 Ω coaxial cable.
Reviews
Write your review
The purchase of the products is always made on request. We manufacture all products, so manufacturing times can be added. That is why the final price of the purchase, as the final price of the shipping costs will be confirmed in an email sent afterwards.
The form of payment will be made once the email is received, so at all times you can cancel the order informing us of the process.
Mi idea era poner una antena para VHF y UHF para iniciarme un poco en estas bandas, no queria unas antenas muy grandes y aparatosas, pero si queria que tuviesen un gran rendimiento, por lo menos el mejor posible, en un tamaño comedido. Despues de dar muchas vueltas, buscar información y comentarios, me he decidido por una 8BS-2 y 12BS-70.
Las antenas estan mecanicamente perfectas, muy sencillas de montar y seguro que daran buenos dias de entretenimiento y DXs.
Nos escuchamos desde IN73DL.
Dear Radio Amateurs.
I am happy for the decision to buy the 8 ele. Quad Antenna for the 2m Band.
Now I am able to hear stations, that I have never heard before. You can try it. Iam sure, that this is the first 8ele. Quad antenna, now working in Carinthia-Austria.
With the very best regards
OE8NDR - Fritz
Desde el Sur de Tenerife al Norte sin problema con la orografía de las Islas. No nos creemos los resultados. Contacto desde el Sur de Tenerife con La Gomera de fondo y contactando con el Norte de Tenerife con señales de S9+. Esto pocas antenas lo logran...
