BIG SIGNAL SlimLoop
High-Performance Multiband Loop Antenna for Limited-Space Installations

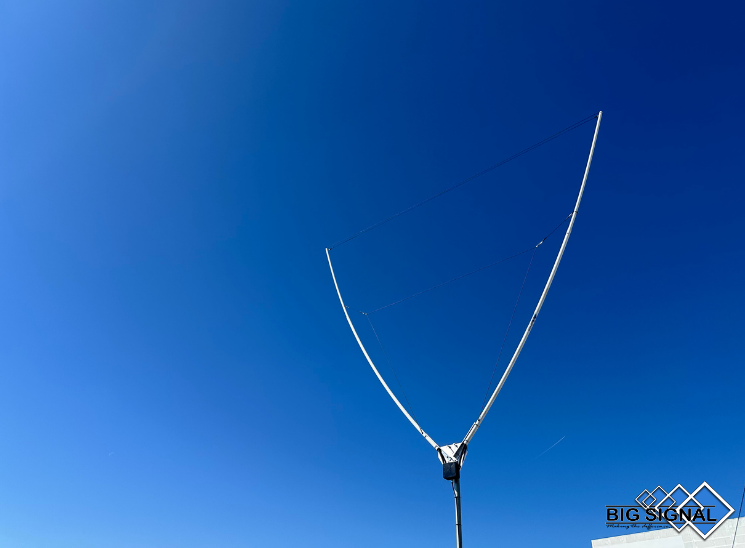

The BIG SIGNAL SlimLoop is a non-resonant closed-loop antenna designed for amateur radio operators who have very limited installation space but still want serious HF DX capability. With a maximum width of only 3.40 m / 11.15 ft, it provides multiband coverage from 40 through 6 meters when used with a suitable antenna tuner (ATU).
Bands: 40 through 6 m

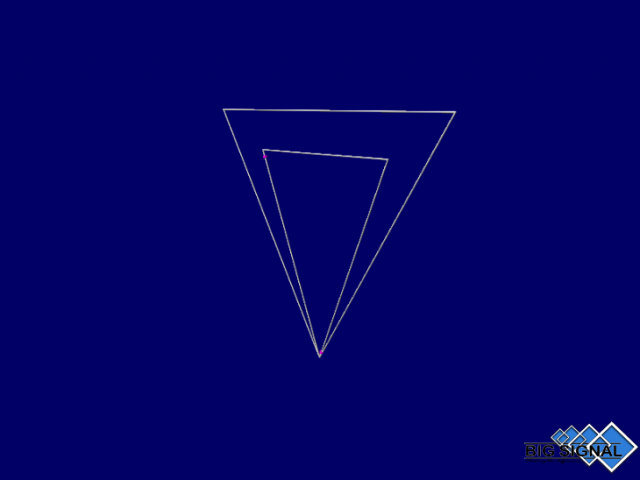

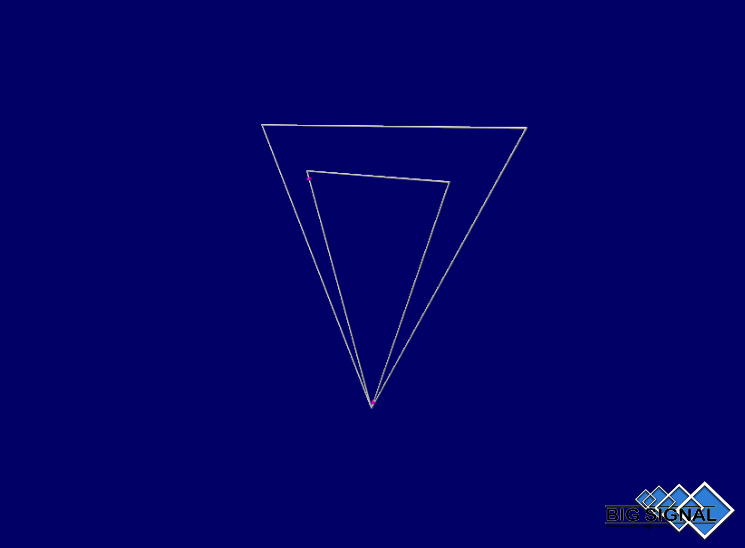

Type: Non-resonant multiband closed loop
Maximum Width: only 3.40 m / 11.15 ft
Polarization: Horizontal
Maximum Power: up to 1,000 W PEP
Antenna Tuner (ATU): Required
Best Performance: especially from 20 through 6 m

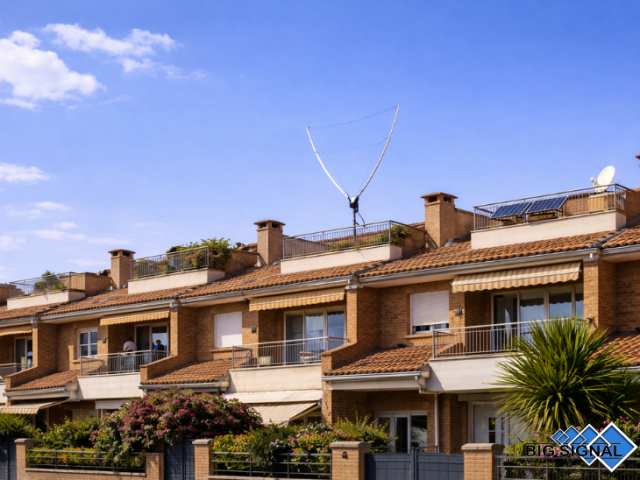

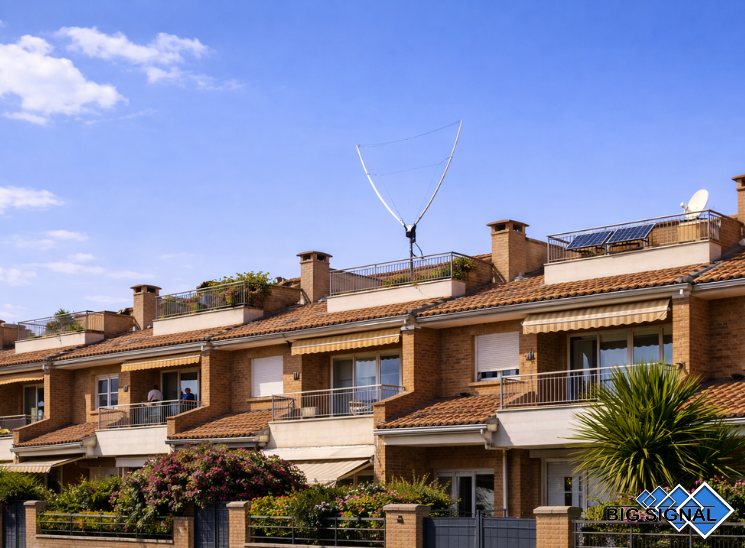

Recommended Use: DX / limited-space stations / urban environments
IMPORTANT: An Antenna Tuner (ATU) Is Required
The SlimLoop is a non-resonant antenna and requires an antenna tuner to properly match the impedance across its different operating bands. Its best overall performance is obtained especially between 20 and 6 meters.
Key Features
• Only 3.40 m / 11.15 ft Maximum Width
Specifically designed for stations where a conventional wire antenna or full-wave loop simply will not fit.
• Multiband Coverage from 40 through 6 Meters
When used with a suitable antenna tuner, a single SlimLoop installation can cover a wide range of amateur HF bands.
• Excellent Size-to-Performance Ratio
Its design is intended to make the most of the available space, with especially attractive performance from 20 through 6 meters.
• Closed Loop for Cleaner Reception
Its closed-loop geometry and horizontal polarization can provide a favorable signal-to-noise ratio in the presence of certain types of electrical noise, an especially useful advantage in urban environments.
• Field-Tested Against Conventional Wire Antennas

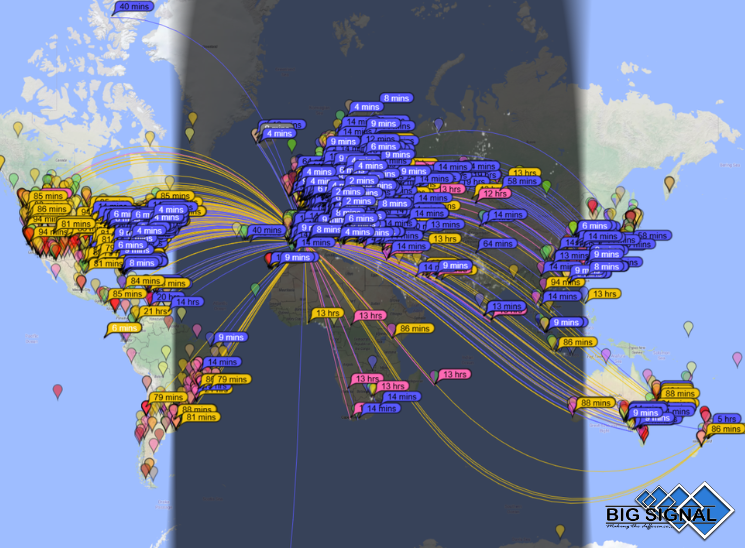

In our field testing, the SlimLoop has shown favorable performance compared with compact EFHW-style configurations and long-wire antennas, particularly in reception and signal-to-noise performance.
• Rugged Outdoor Construction
Built using aluminum, stainless steel, fiberglass, and UV-protected wire to provide mechanical strength and long-term durability in outdoor installations.
SlimLoop Advantages
• Only 3.40 m / 11.15 ft maximum width.
• Multiband coverage from 40 through 6 meters.
• Especially effective from 20 through 6 meters.
• Closed loop with horizontal polarization.
• Up to 1,000 W PEP power handling.
• Designed for DX and limited-space stations.
When Space Is Limited, Every Foot Matters.
BIG SIGNAL SlimLoop – a compact multiband antenna designed to provide the best possible balance of available space, performance, and operating versatility.
Technical Specifications
Frequency Range: 5.3 – 52 MHz
Gain: 1.0 – 2.9 dBi (Free Space)
Polarization: Horizontal

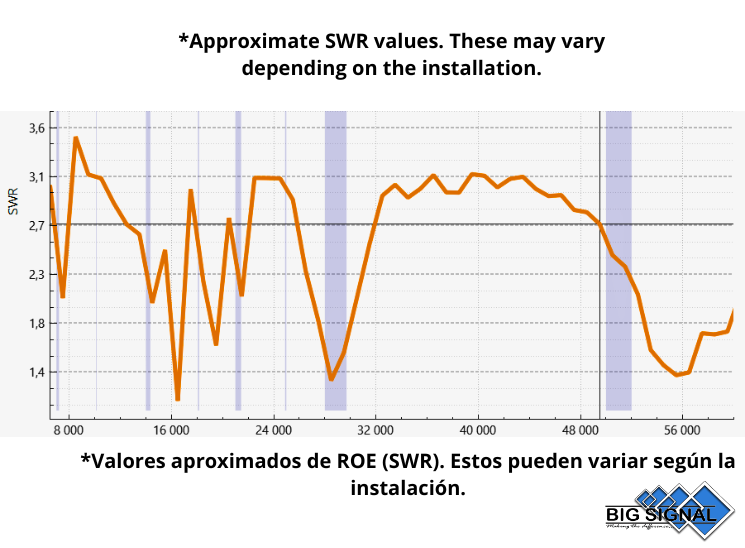

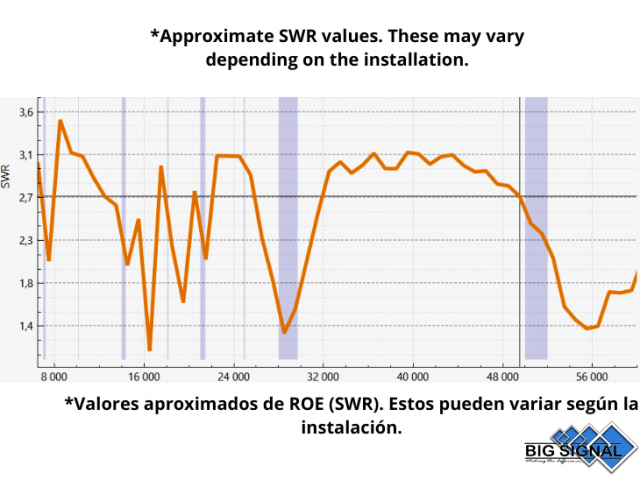

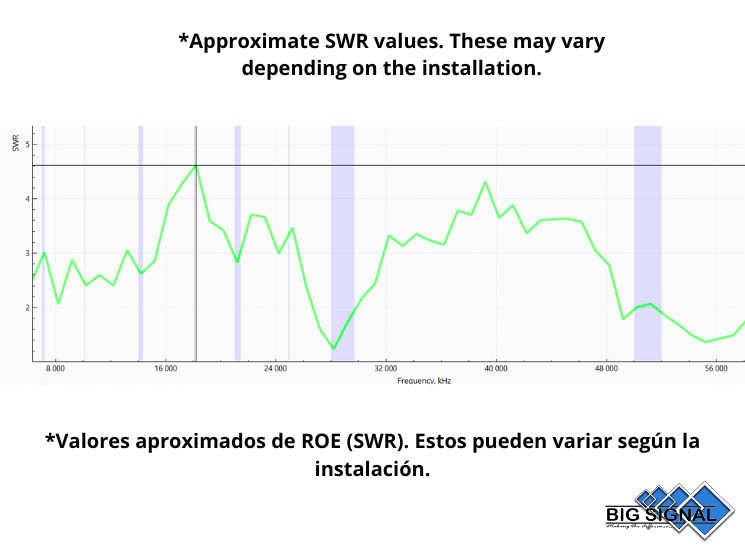

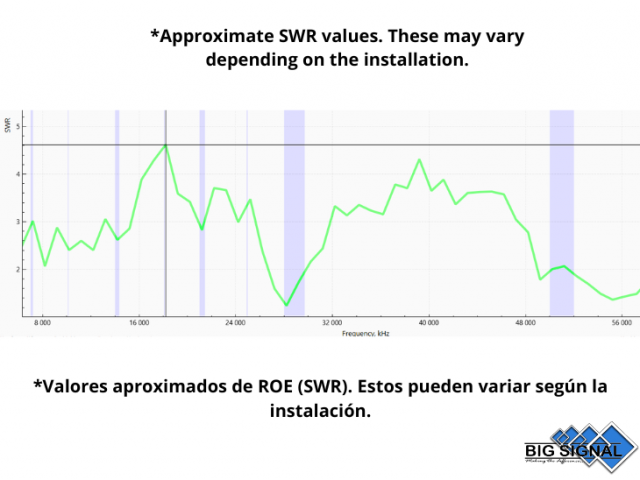

SWR: 1.5:1 – 5.0:1
Balun: Included
Maximum Power: 1,000 W PEP
Total Height: 3.40 m / 11.15 ft
Total Width: 3.40 m / 11.15 ft

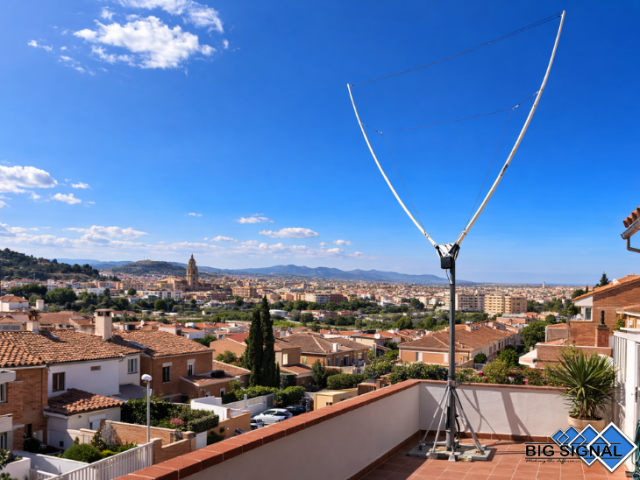

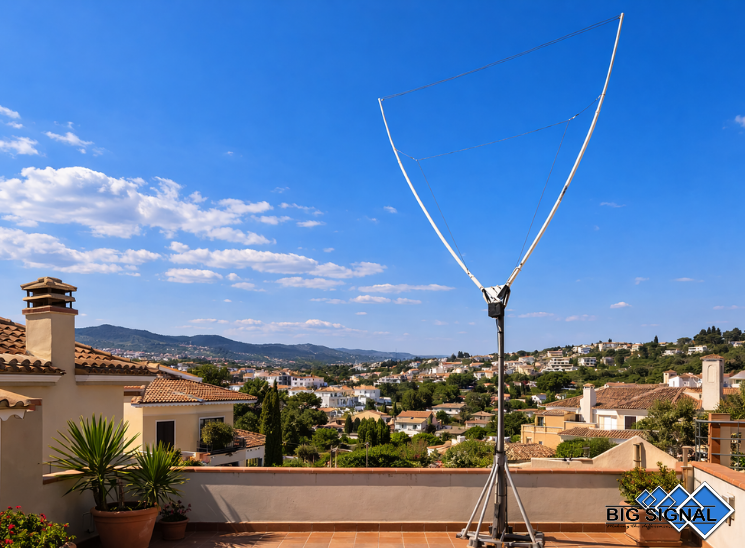

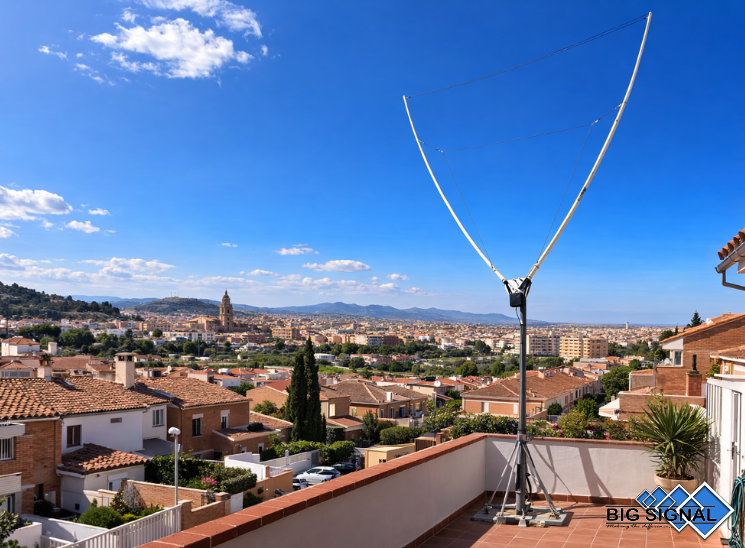

Minimum Recommended Height: from approximately 2 m / 6.56 ft
Weight: approximately 3 kg / 6.61 lb
Shipping Dimensions: 200 × 10 × 10 cm / 78.74 × 3.94 × 3.94 in
Wind Survival: > 150 km/h / 93 mph
Important: An Antenna Tuner (ATU) Is Required
The SlimLoop is a non-resonant multiband antenna and requires a suitable antenna tuner for operation on most bands. The achievable matching range may vary depending on the installation geometry, antenna height, surrounding environment, and feed-line length.
Installation Recommendation: use an RF choke on the coaxial feed line before it enters the shack.
Construction & Materials
• Mast Mounting Plate
Heavy-duty 250 × 150 × 8 mm / 9.84 × 5.91 × 0.31 in mounting plate, designed to provide a strong and stable base for the antenna assembly.
• Element Supports
Constructed from 30 × 4 mm / 1.18 × 0.16 in angle sections to provide firm and secure support for the antenna elements.
• Hardware & Fasteners
Made from W4-grade stainless steel, selected to provide excellent mechanical strength, corrosion resistance, and long-term durability in outdoor installations.
• Fiberglass Support System
Custom-made reinforced fiberglass elements using telescopic half-round profiles measuring 30 × 25 mm / 1.18 × 0.98 in and 25 × 20 mm / 0.98 × 0.79 in. Their geometry is specifically designed to fit the support structure correctly and incorporates a UV-protective coating for improved long-term resistance to outdoor exposure.

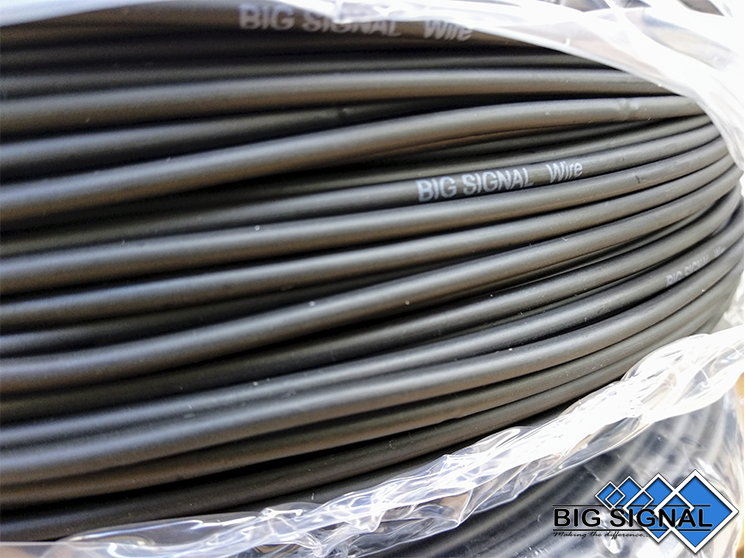

• BIG SIGNAL Wire
Special copper wire with a polyethylene (PE) jacket, designed to provide excellent weather protection and high mechanical durability for long-term outdoor installations.

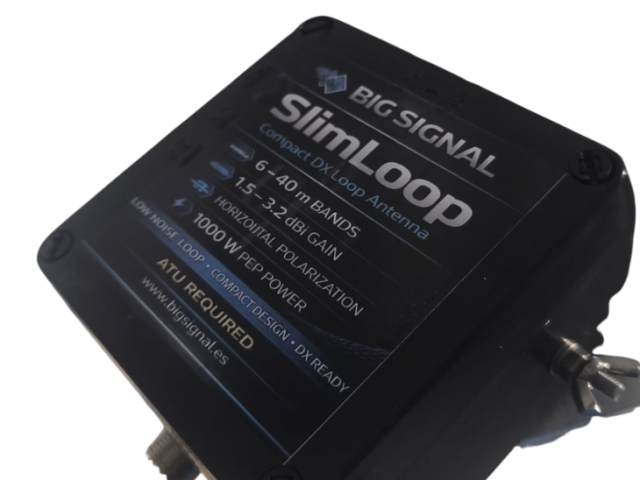

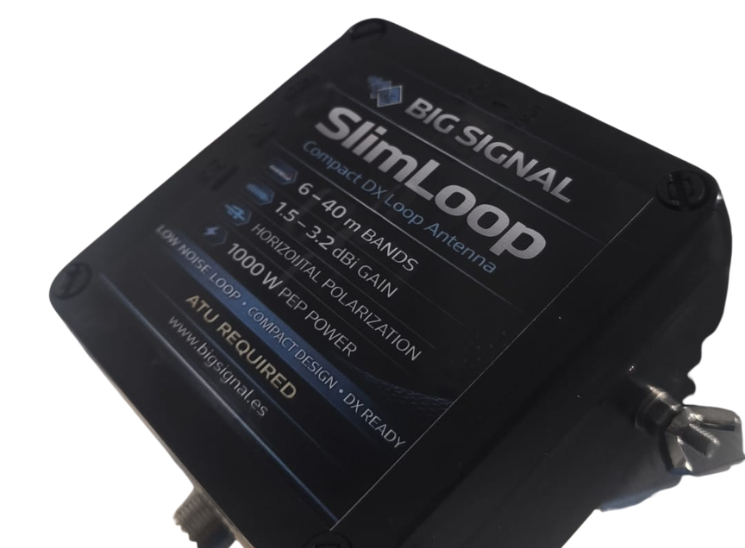

• RF Feed
Connection via SO-239 (UHF female) connector.
The purchase of the products is always made on request. We manufacture all products, so manufacturing times can be added. That is why the final price of the purchase, as the final price of the shipping costs will be confirmed in an email sent afterwards.
The form of payment will be made once the email is received, so at all times you can cancel the order informing us of the process.
ES
EN
Después de instalar la SlimLoop de Big Signal, puedo decir que el cambio respecto a la end-fed que tenía anteriormente ha sido muy notable. He ganado tanto en recepción como en transmisión, con una mejor relación señal/ruido y una mayor facilidad para realizar contactos, especialmente en FT8 y DX.
Lo que más me ha sorprendido es el rendimiento que ofrece para el poco espacio que ocupa. Vivo en un ático y, por limitaciones de espacio, no puedo instalar antenas de mayor tamaño. La SlimLoop ha sido la solución perfecta: es muy fácil de instalar, discreta y ofrece unas prestaciones que superan mis expectativas.
Además, se defiende realmente bien en 40 metros, algo que no esperaba en una antena tan compacta, y su funcionamiento en 6 metros también es muy destacable, permitiendo aprovechar la banda cuando hay aperturas.
La calidad de construcción es excelente y se nota que está diseñada con mimo. En definitiva, si buscas una antena compacta, eficiente y con un rendimiento muy superior al que su tamaño hace pensar, la SlimLoop de Big Signal es una opción totalmente recomendable.

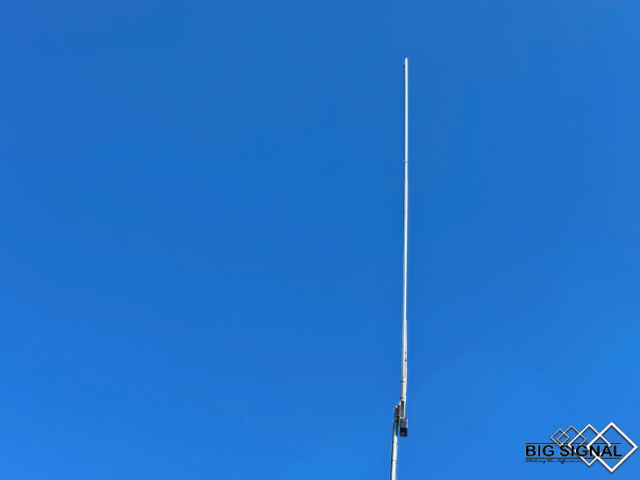

Llevo poco tiempo utilizando esta antena para HF, pero desde el primer momento he notado una diferencia muy importante respecto a la antena vertical D original que tenía.
La instalé en un edificio donde el espacio disponible es muy reducido, y para este tipo de instalaciones me parece una solución excelente. Uno de los aspectos que más me ha sorprendido es su bajísimo nivel de ruido, incluso estando en pleno centro de la ciudad. Gracias a ello puedo escuchar señales muy débiles que antes pasaban desapercibidas o apenas eran inteligibles.
La utilizo con un acoplador y admite hasta 500 W de potencia en picos, lo que ofrece un buen margen de funcionamiento.
En FT8 he notado una mejora clara: realizo más contactos porque ahora escucho mejor y, al mismo tiempo, mi señal llega con más facilidad. En mi experiencia, ha supuesto un cambio sustancial y estoy muy satisfecho con la compra.
