Discover the BIG SIGNAL SkyLine antenna, a new and innovative HF antenna concept designed exclusively by BIG SIGNAL, unique on the market.
The SkyLine is an omnidirectional antenna for the DX, covering from 10 to 20 meters, full-wavelength in its 5 bands and horizontal polarization. In times where noise in cities is getting louder, a closed antenna and horizontal polarization is the definitive solution to improve the reception of DX signals in the bands.
Why choose the BIG SIGNAL SkyLine antenna over another conventional Dipole or Vertical antenna?
· 5 full wavelength bands, achieving maximum performance and efficiency. · Very low noise: Being a closed antenna, it will allow you to reduce the urban noise and improve the reception quality of weak DX signals in the bands. · Omnidirectional: no need for tower or rotator, ideal for simple installations. · Incredible bandwidth: SWR below 1,5:1 on the 5 working bands, forget about using the tunner. · Guaranteed superior performance against multi-band dipoles, cobweb, etc. · Horizontal position: minimizing the visual impact, as well as its resistance to strong winds. · Construction: heavy-duty with high quality materials for extreme durability, with only 7 Kg. Of weight.
Discover the magic of Cubical Quad antennas and live a new experience in the DX in HF like never before...
· Bands: 10 / 12 / 15 / 17 / 20 m. *(Very acceptable performance in 6, 30, 40 and 60 meters with the use of tunner). · Gain: 3,61 / 3,46 / 3,36 / 3,29 / 3,23 dBi. (free space). · Polarization: Horizontal. · SWR: Bellow 1,5:1 all bands. · Power rating: 2.000 W. PEP. · Total height: 0,60 m. / 1,96 ft · Total wide: Diagonal of 8 x 6.5 m. (4 + 4 m.) and (4 + 2.5 m.). / 26 x 19 ft · Weight: 7 Kg / 15,43 lb · Wind survival: > 160 Km/h / 100 mph · Wind load:0,306 m2 | 240,21 N | @ 120 km/h.

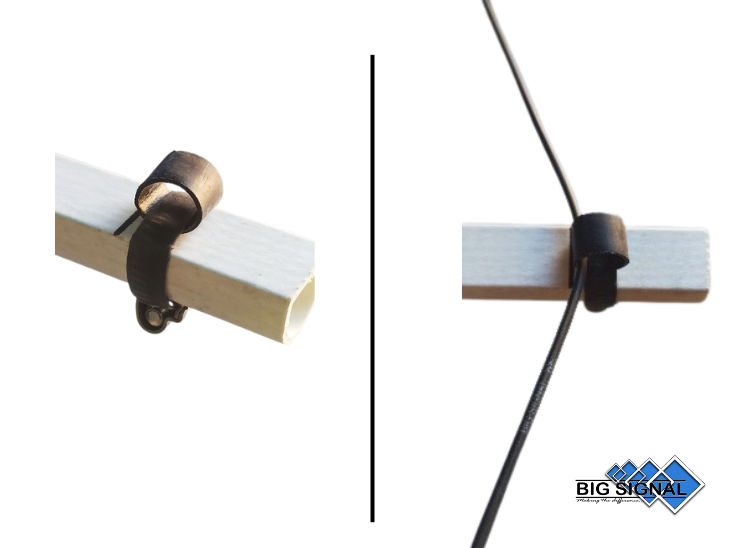

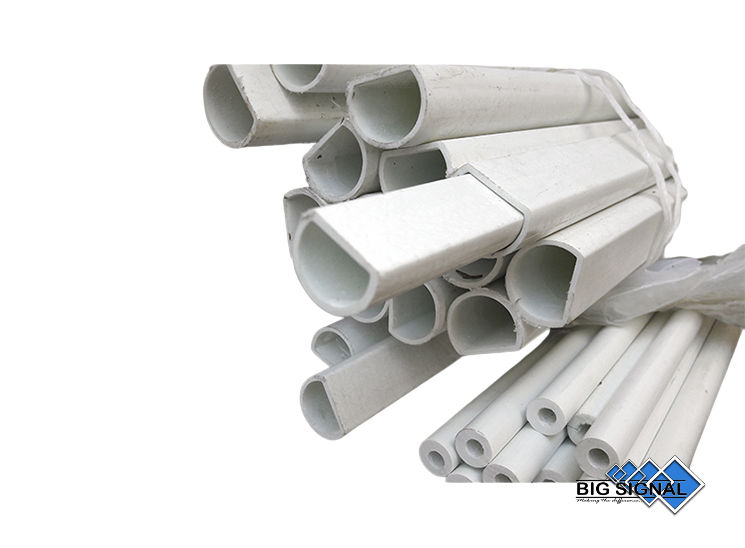

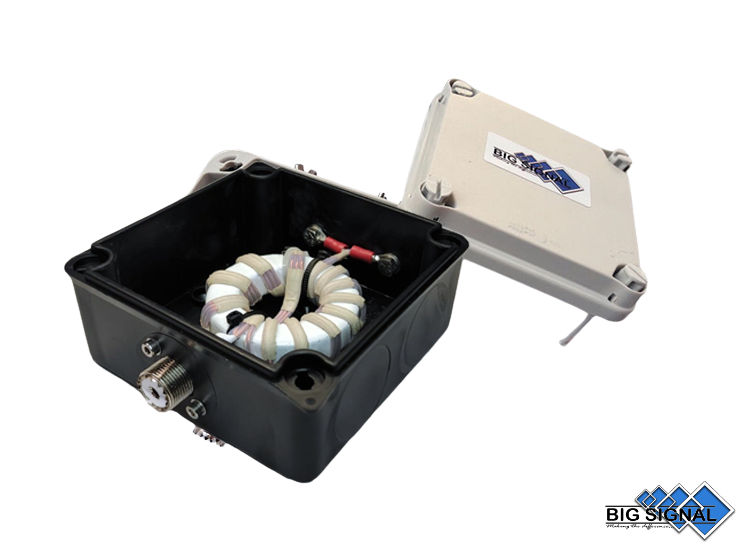

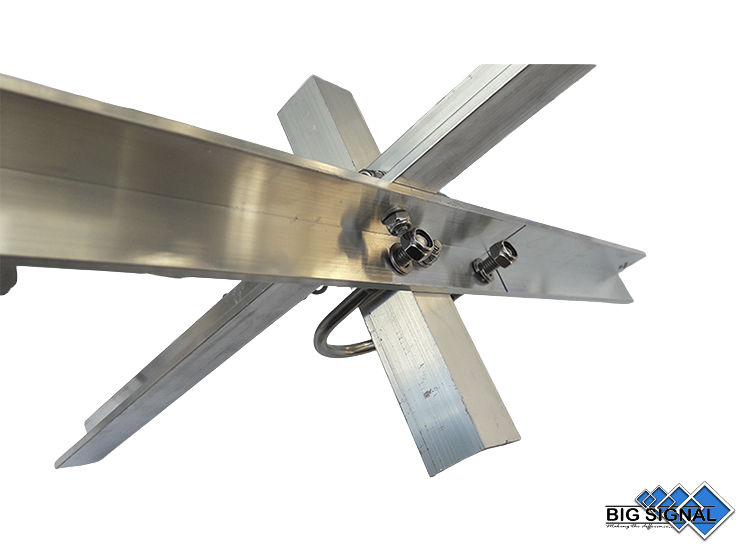

·Mast support: Angled design of 30 x 5 mm and stabilizing element to the boom of 4 mm. ·Hardware: Stainless Steel, W4 grade. ·Spreaders arms: Fiberglass especially molded and designed to our needs, half-round for a perfect adaptation to the surface of our crossbar, reinforced fiber cloth and protective layer for the sun. ·Rope: Dyneema® 2 mm. · Cable: BIG SIGNAL - Wire. Special copper cable with polyethylene (PE) sheath for excellent weather protection and mechanical resistance. · Feeding: High Quality current balun.
Write your review
BIG SIGNAL SkyLine Antenna (RXing 20, 17 and 15 meters) [27/11/2020]
The purchase of the products is always made on request. We manufacture all products, so manufacturing times can be added. That is why the final price of the purchase, as the final price of the shipping costs will be confirmed in an email sent afterwards.
The form of payment will be made once the email is received, so at all times you can cancel the order informing us of the process.
