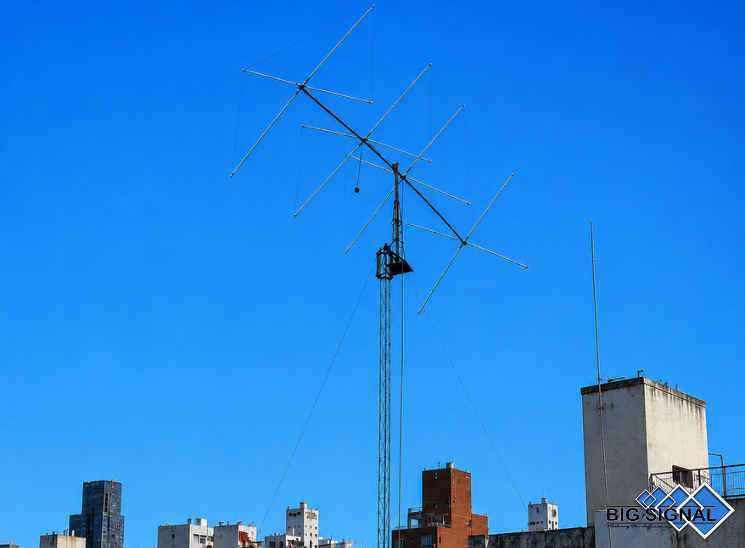

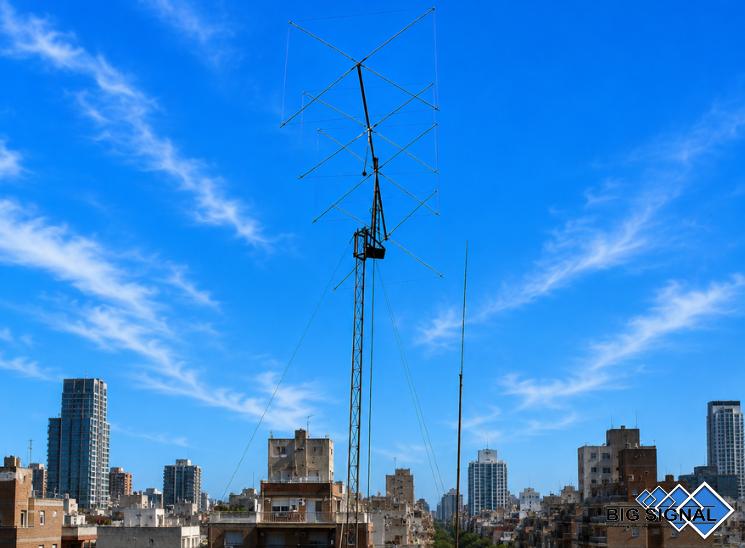

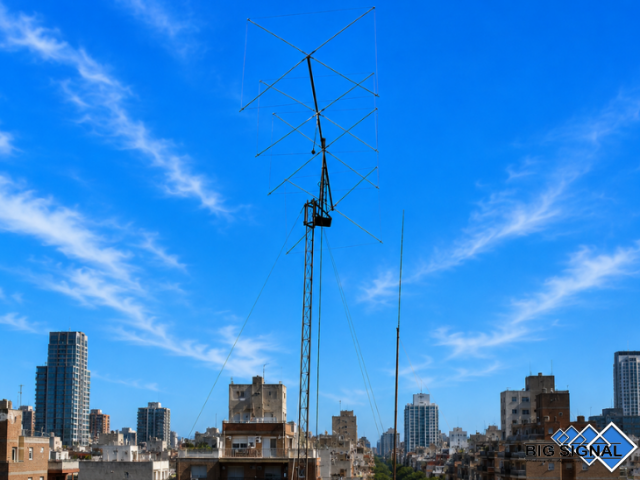

BIG SIGNAL 4BS-11
4-Element Quad for Serious DX Performance on 27 MHz
The BIG SIGNAL 4BS-11 is a directional 4-element full-wave Quad antenna, developed for operators looking for a higher level of gain, directivity, and signal control on the 27 MHz / 11-meter band.
With a reflector, driven element, and two directors, the BIG SIGNAL 4BS-11 takes the Quad concept to a configuration clearly focused on long-distance DX and weak-signal reception, while maintaining an excellent balance between performance and overall size.
Band: 27 MHz / 11-Meter Band
Configuration: 4-element Quad
Elements: Full-wave closed loops
Element Layout: Reflector + Driven Element + 2 Directors
Type: Directional monoband antenna
Polarization: Horizontal
Designed For: High-performance DX
Configuration: 4-element Quad
Elements: Full-wave closed loops
Element Layout: Reflector + Driven Element + 2 Directors
Type: Directional monoband antenna
Polarization: Horizontal
Designed For: High-performance DX
When Every dB Counts
• Four Full-Wave Quad Elements
The 4BS-11 uses four closed-loop elements specifically optimized for 27 MHz. This configuration was developed to extract high performance from the Quad geometry.
The 4BS-11 uses four closed-loop elements specifically optimized for 27 MHz. This configuration was developed to extract high performance from the Quad geometry.
• More Gain and Greater Directivity
The addition of two directors further concentrates RF energy toward the desired direction, providing excellent performance for long-distance DX.
The addition of two directors further concentrates RF energy toward the desired direction, providing excellent performance for long-distance DX.
• Excellent Signal-to-Noise Ratio
High directivity and strong rejection outside the main lobe help reduce signals and interference arriving from unwanted directions, making it easier to copy DX stations close to the noise floor.
High directivity and strong rejection outside the main lobe help reduce signals and interference arriving from unwanted directions, making it easier to copy DX stations close to the noise floor.
• Excellent Front-to-Back Rejection
The 4BS-11 is designed to do more than simply put a strong signal forward. Its directional pattern allows you to use your rotor to reduce stations and interference arriving from unwanted directions.
The 4BS-11 is designed to do more than simply put a strong signal forward. Its directional pattern allows you to use your rotor to reduce stations and interference arriving from unwanted directions.
• Stable DX Signal Reception
Quad geometry can provide favorable behavior under certain polarization changes encountered during propagation, helping maintain more stable signal reception under certain conditions.
Quad geometry can provide favorable behavior under certain polarization changes encountered during propagation, helping maintain more stable signal reception under certain conditions.
In DX, More Power Isn't Always the Answer
A highly directional antenna concentrates more RF energy toward the station you're working while also improving reception from that direction. When a signal is barely above the noise floor, gain, directivity, and rejection can make the difference between working the DX and missing it.
Why Choose a Quad Over a Yagi?
Yagis and Quads represent two different approaches to directional antenna design. While a conventional Yagi typically uses open elements, the 4BS-11 uses four full-wave closed-loop elements.
This configuration provides an excellent combination of gain, directivity, and signal-to-noise performance, while maintaining competitive dimensions for the level of performance achieved.
The Next Level in the 11-Meter Lineup
• 2BS-11 → Compact and efficient for getting started with directional DX.
• 3BS-11 → More gain, selectivity, and rejection for the advanced DX operator.
• 4BS-11 → The model for operators who demand maximum performance from the BIG SIGNAL 11-meter directional lineup.
• 3BS-11 → More gain, selectivity, and rejection for the advanced DX operator.
• 4BS-11 → The model for operators who demand maximum performance from the BIG SIGNAL 11-meter directional lineup.
Built to Stay on the Tower
• Rugged Construction
Designed for permanent installations and manufactured from carefully selected materials to provide mechanical strength and long-term durability.
Designed for permanent installations and manufactured from carefully selected materials to provide mechanical strength and long-term durability.
• Optimized Monoband Design
No multiband compromises. The entire antenna geometry has been developed around one goal: maximum possible performance on 27 MHz.
No multiband compromises. The entire antenna geometry has been developed around one goal: maximum possible performance on 27 MHz.
Sometimes, Hearing Just a Little More Changes Everything.
When propagation opens up, many antennas can make DX contacts. The difference becomes clear when conditions are less than perfect, the band gets crowded, and the station you're looking for is barely above the noise. The BIG SIGNAL 4BS-11 was designed precisely for those moments: more gain, greater directivity, and more ability to isolate the signal you actually want to hear.
BIG SIGNAL 4BS-11 – When DX Gets Tough, That's When It Gets Interesting.
Technical Specifications
Band: 27 MHz / 11-Meter Band
Elements: 4 full-wave Quad elements
Gain: 10.40 dBi (Free Space)
F/B Ratio: 22.40 dB
Polarization: Horizontal
SWR: 1.1:1 – 1.5:1
Impedance: 50 Ω
Maximum Power: 5,000 W PEP
Boom Length: 5.70 m / 18.70 ft
Turning Radius: 3.363 m / 11.03 ft
Total Height: 2.75 m / 9.02 ft
Weight: 12 kg / 26.46 lb
Wind Survival: > 150 km/h / 93 mph
Wind Load: 0.702 m² / 7.56 ft² | 550.91 N / 123.85 lbf | @ 120 km/h / 74.6 mph
Elements: 4 full-wave Quad elements
Gain: 10.40 dBi (Free Space)
F/B Ratio: 22.40 dB
Polarization: Horizontal
SWR: 1.1:1 – 1.5:1
Impedance: 50 Ω
Maximum Power: 5,000 W PEP
Boom Length: 5.70 m / 18.70 ft
Turning Radius: 3.363 m / 11.03 ft
Total Height: 2.75 m / 9.02 ft
Weight: 12 kg / 26.46 lb
Wind Survival: > 150 km/h / 93 mph
Wind Load: 0.702 m² / 7.56 ft² | 550.91 N / 123.85 lbf | @ 120 km/h / 74.6 mph
Construction & Materials
The days of fragile Quad antennas are over.
The perception of the Quad as a mechanically delicate antenna belongs to another era. At BIG SIGNAL, we combine CNC machinery, in-house manufacturing capabilities, and materials specifically selected for each structural function, allowing us to design and manufacture purpose-built components rather than adapt generic solutions. The result is a modern, precise, and robust Quad, engineered for permanent outdoor installation.

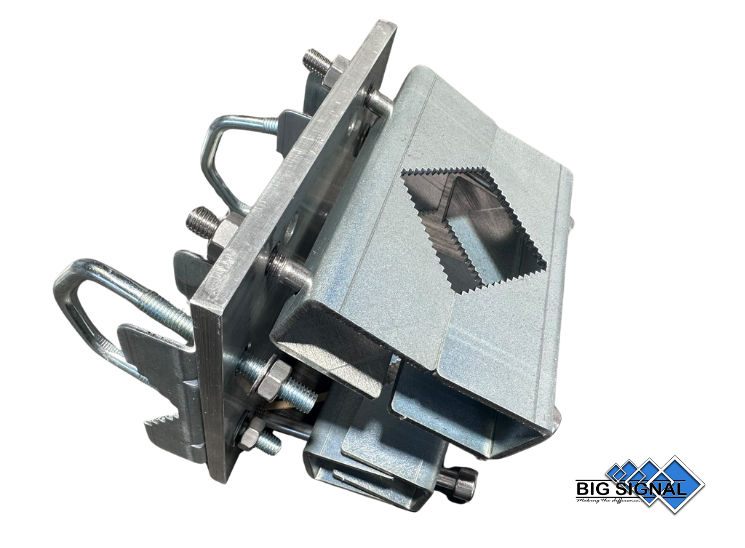

• Boom-to-Mast Plate
Heavy-duty 150 × 150 × 8 mm / 5.91 × 5.91 × 0.31 in mounting plate, designed to provide a strong and secure connection between the boom and mast.
Heavy-duty 150 × 150 × 8 mm / 5.91 × 5.91 × 0.31 in mounting plate, designed to provide a strong and secure connection between the boom and mast.

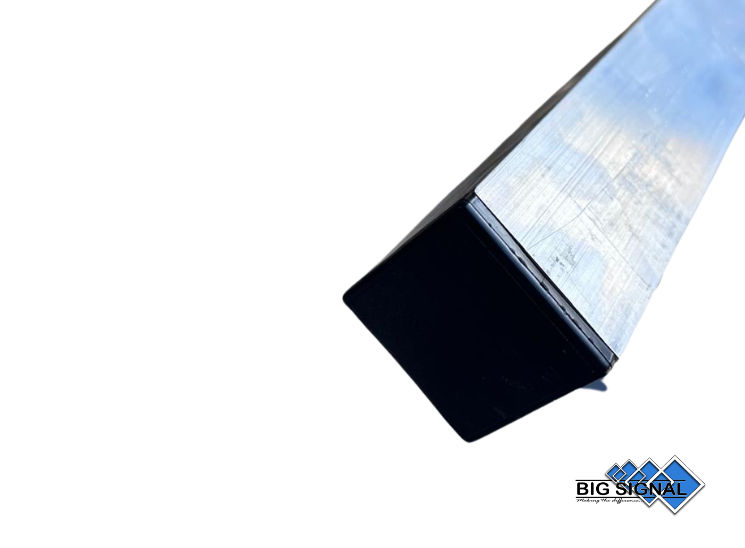

• Boom
Square 50 × 2 mm / 1.97 × 0.08 in tubing, selected to provide high structural rigidity while keeping overall weight under control.
Square 50 × 2 mm / 1.97 × 0.08 in tubing, selected to provide high structural rigidity while keeping overall weight under control.

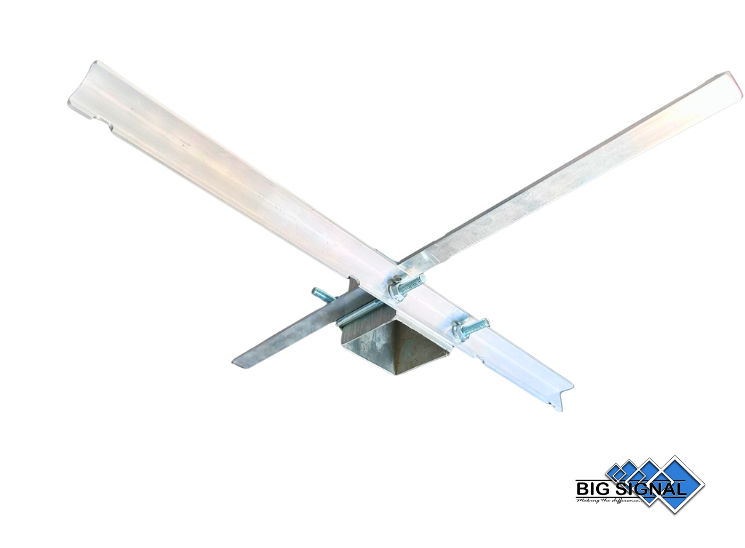

• Spider System
Constructed from 25 × 3 mm / 0.98 × 0.12 in angle sections.
Constructed from 25 × 3 mm / 0.98 × 0.12 in angle sections.
• Hardware
Made from W4-grade stainless steel for excellent mechanical strength, corrosion resistance, and long-term durability in outdoor installations.
Made from W4-grade stainless steel for excellent mechanical strength, corrosion resistance, and long-term durability in outdoor installations.

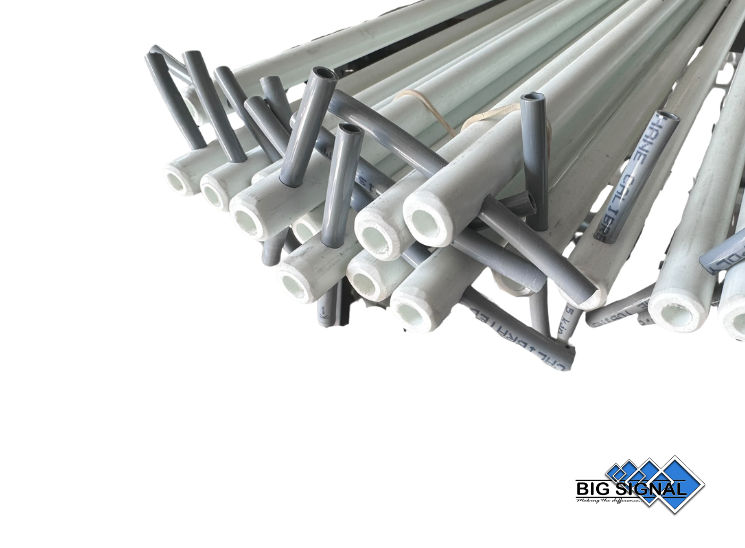

• Fiberglass Spreader System
14 × 7 mm / 0.55 × 0.28 in reinforced fiberglass tubing with a UV-protective coating, designed for long-term permanent outdoor installations.
14 × 7 mm / 0.55 × 0.28 in reinforced fiberglass tubing with a UV-protective coating, designed for long-term permanent outdoor installations.

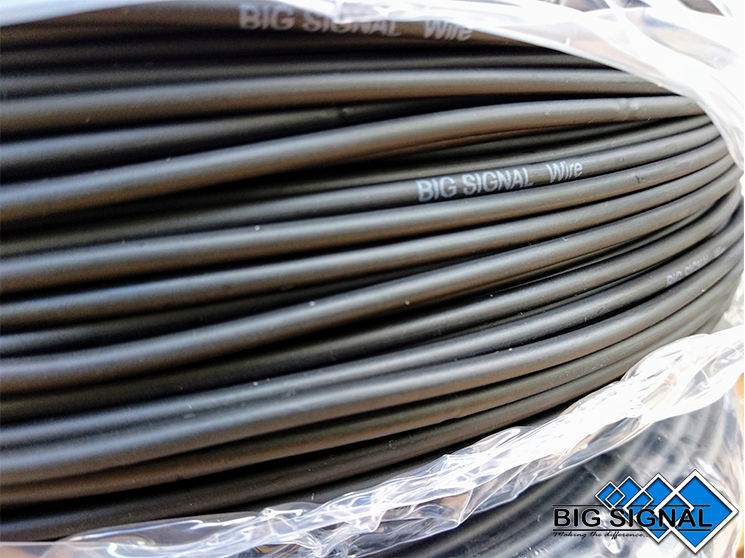

• BIG SIGNAL Wire by Messi & Palioni
Special copper wire with a polyethylene (PE) jacket, developed to provide excellent weather protection and high mechanical durability for long-term outdoor use.
Special copper wire with a polyethylene (PE) jacket, developed to provide excellent weather protection and high mechanical durability for long-term outdoor use.
• RF Feed
Direct connection to 50 Ω coaxial cable terminals.
Direct connection to 50 Ω coaxial cable terminals.
Construction
_NF1WbG-Yr.png?updatedAt=1789116107718)
