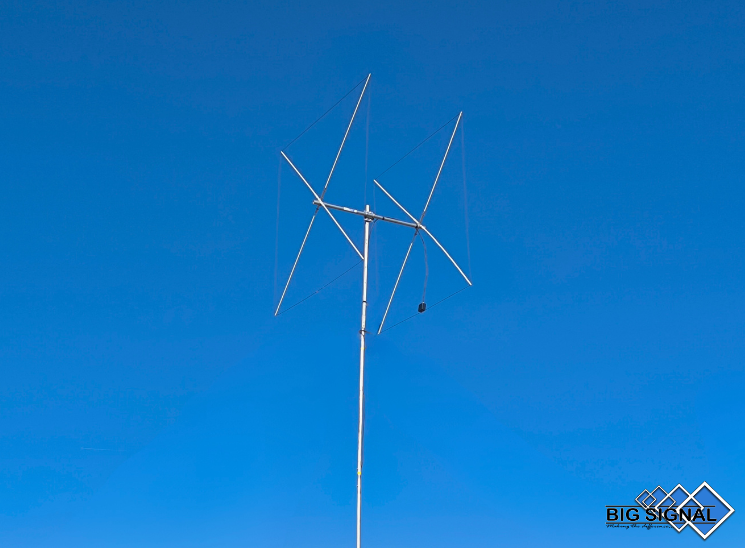

BIG SIGNAL 2BS-11
The Directional Cubical Quad That Takes 11-Meter DX to the Next Level
The BIG SIGNAL 2BS-11 is a 2-element full-wave directional Cubical Quad, specifically designed for operators looking to get maximum performance from the 27 MHz / 11-meter band.
Its design combines gain, directivity, and an excellent signal-to-noise ratio in a relatively compact configuration, making it an outstanding choice for operators ready to move from an omnidirectional or wire antenna to high-performance directional DX.
Band: 27 MHz / 11 meters
Configuration: 2-element Cubical Quad
Elements: Full-wave closed loops
Type: Single-band directional antenna
Polarization: Horizontal or Vertical
Recommended Use: DX / Long-Distance Communications / Weak-Signal Operation
Configuration: 2-element Cubical Quad
Elements: Full-wave closed loops
Type: Single-band directional antenna
Polarization: Horizontal or Vertical
Recommended Use: DX / Long-Distance Communications / Weak-Signal Operation
What Makes the 2BS-11 Different?
• Two Full-Wave Quad Elements
The 2BS-11 uses two full-wave closed loops — a driven element and reflector — specifically optimized for 27 MHz. This configuration takes advantage of the unique electrical and radiation characteristics of the Cubical Quad design.
The 2BS-11 uses two full-wave closed loops — a driven element and reflector — specifically optimized for 27 MHz. This configuration takes advantage of the unique electrical and radiation characteristics of the Cubical Quad design.
• Gain and Directivity for Serious DX
Unlike an omnidirectional antenna, the 2BS-11 concentrates RF energy toward the selected direction, providing greater effective gain and improved capability for working weak DX signals.
Unlike an omnidirectional antenna, the 2BS-11 concentrates RF energy toward the selected direction, providing greater effective gain and improved capability for working weak DX signals.
• High Performance with Only 2 Elements
One of the major advantages of the Quad geometry is its excellent gain-to-size and gain-to-boom-length ratio, delivering impressive directional performance without requiring a large multi-element structure.
One of the major advantages of the Quad geometry is its excellent gain-to-size and gain-to-boom-length ratio, delivering impressive directional performance without requiring a large multi-element structure.
• Excellent Signal-to-Noise Ratio
The combination of closed-loop elements, directivity, and off-axis rejection can help reduce the pickup of certain types of interference, making it easier to copy weak signals sitting just above the noise floor.
The combination of closed-loop elements, directivity, and off-axis rejection can help reduce the pickup of certain types of interference, making it easier to copy weak signals sitting just above the noise floor.
• Strong Front-to-Back Rejection
Its directional radiation pattern concentrates reception toward the desired station while attenuating signals arriving from the rear, an especially useful advantage when the band is crowded.
Its directional radiation pattern concentrates reception toward the desired station while attenuating signals arriving from the rear, an especially useful advantage when the band is crowded.
• Wide Operating Bandwidth
The 2BS-11 is optimized to maintain a low SWR throughout its operating range, allowing convenient operation across 27 MHz without constant retuning or adjustment.
The 2BS-11 is optimized to maintain a low SWR throughout its operating range, allowing convenient operation across 27 MHz without constant retuning or adjustment.
When Hearing Better Is Just as Important as Reaching Farther
DX is not only about putting out a strong signal. The ability to separate a weak station from noise and signals arriving from unwanted directions can make the difference between hearing the DX and missing it completely. This is where the directivity of the 2BS-11 becomes one of its greatest advantages.
Why Choose a Cubical Quad Over a Yagi?
Yagis and Cubical Quads represent two different approaches to directional antenna design. While a conventional Yagi typically uses open elements approximately one-half wavelength long, the 2BS-11 uses full-wave closed-loop elements.
With only two elements, the Quad geometry provides an especially attractive combination of gain, efficiency, directivity, and signal-to-noise performance while maintaining a relatively compact boom length.
Built to Install and Enjoy
• Compact Design
A high-performance directional antenna with a more compact structure than designs requiring a larger number of elements.
A high-performance directional antenna with a more compact structure than designs requiring a larger number of elements.
• Heavy-Duty Construction
Built with carefully selected materials for reliable long-term outdoor installations.
Built with carefully selected materials for reliable long-term outdoor installations.
• Straightforward Installation
Once properly assembled and installed, the antenna is designed to provide stable operation without the need for constant mechanical adjustments.
Once properly assembled and installed, the antenna is designed to provide stable operation without the need for constant mechanical adjustments.
Some Antennas Put a Signal on the Air. Others Let You Hunt for It.
The BIG SIGNAL 2BS-11 is designed for operators ready to take the next step on 11 meters. Not only because of its gain, but because of its ability to focus your signal, reject unwanted directions, and pull out DX that may remain buried in the noise with an omnidirectional antenna. When conditions get tough, directivity makes the difference.
BIG SIGNAL 2BS-11 – Less Noise. More Signal. More DX.
Technical Specifications
Band: 27 MHz / 11 meters
Elements: 2 full-wave Quad elements
Gain: 7.5 dBi (free Space)
F/B Ratio: 22.23 dB
Polarization: Horizontal or Vertical
SWR: 1.1:1 – 1.5:1
Impedance: 50 Ω
Maximum Power: 2,000 W PEP
Balun: Included
Boom Length: 2.00 m / 6.56 ft
Turning Radius: 2.096 m / 6.88 ft
Total Height: 2.75 m / 9.02 ft
Weight: 6 kg / 13.23 lb
Wind Survival: > 150 km/h / 93 mph
Wind Load: 0.301 m² / 3.24 ft² | 236.52 N / 53.18 lbf | @ 120 km/h / 74.6 mph
Elements: 2 full-wave Quad elements
Gain: 7.5 dBi (free Space)
F/B Ratio: 22.23 dB
Polarization: Horizontal or Vertical
SWR: 1.1:1 – 1.5:1
Impedance: 50 Ω
Maximum Power: 2,000 W PEP
Balun: Included
Boom Length: 2.00 m / 6.56 ft
Turning Radius: 2.096 m / 6.88 ft
Total Height: 2.75 m / 9.02 ft
Weight: 6 kg / 13.23 lb
Wind Survival: > 150 km/h / 93 mph
Wind Load: 0.301 m² / 3.24 ft² | 236.52 N / 53.18 lbf | @ 120 km/h / 74.6 mph
Construction & Materials
• Boom-to-Mast Plate
Heavy-duty 150 × 150 × 8 mm / 5.91 × 5.91 × 0.31 in mounting plate, engineered to provide a strong and secure connection between the boom and mast.
Heavy-duty 150 × 150 × 8 mm / 5.91 × 5.91 × 0.31 in mounting plate, engineered to provide a strong and secure connection between the boom and mast.
• Boom
Square 50 × 2 mm / 1.97 × 0.08 in tubing, providing an excellent balance between structural rigidity and low overall weight.
Square 50 × 2 mm / 1.97 × 0.08 in tubing, providing an excellent balance between structural rigidity and low overall weight.
• Spider System
Constructed from 25 × 3 mm / 0.98 × 0.12 in angle sections, designed to provide strong and secure support for the Quad elements.
Constructed from 25 × 3 mm / 0.98 × 0.12 in angle sections, designed to provide strong and secure support for the Quad elements.
• Hardware
Made from W4-grade stainless steel for excellent mechanical strength, corrosion resistance, and long-term durability in outdoor installations.
Made from W4-grade stainless steel for excellent mechanical strength, corrosion resistance, and long-term durability in outdoor installations.
• Fiberglass Spreader System
14 × 7 mm / 0.55 × 0.28 in reinforced fiberglass tubing with a UV-protective coating, designed for long-term permanent outdoor installations.
14 × 7 mm / 0.55 × 0.28 in reinforced fiberglass tubing with a UV-protective coating, designed for long-term permanent outdoor installations.
• BIG SIGNAL Wire by Messi & Palioni
Special copper wire with a polyethylene (PE) jacket, selected to provide excellent weather protection and high mechanical durability for long-term outdoor use.
Special copper wire with a polyethylene (PE) jacket, selected to provide excellent weather protection and high mechanical durability for long-term outdoor use.

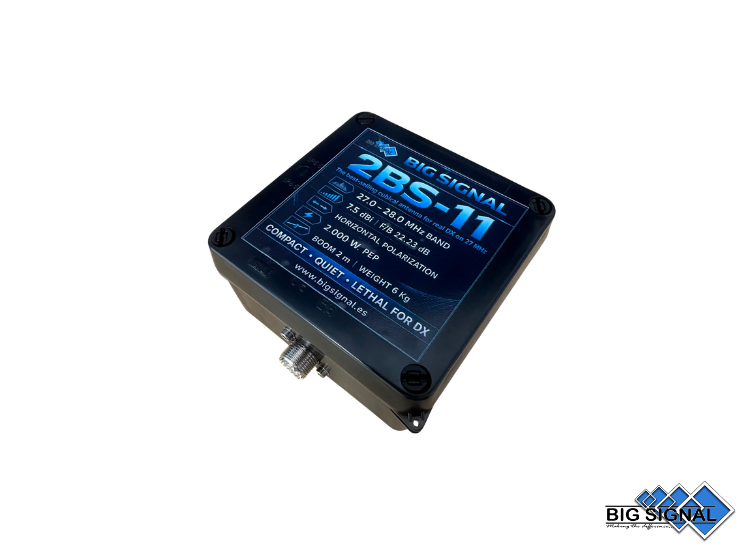

• RF Feed
Equipped with a high-quality current balun, included with the antenna.
Equipped with a high-quality current balun, included with the antenna.
