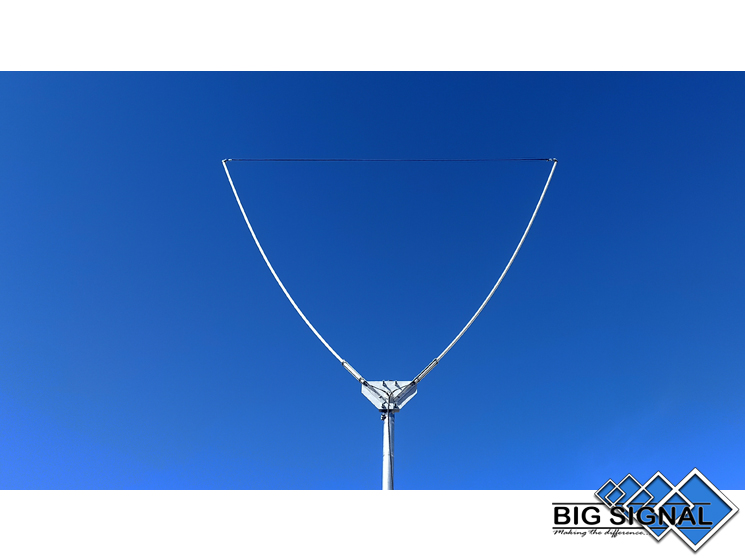

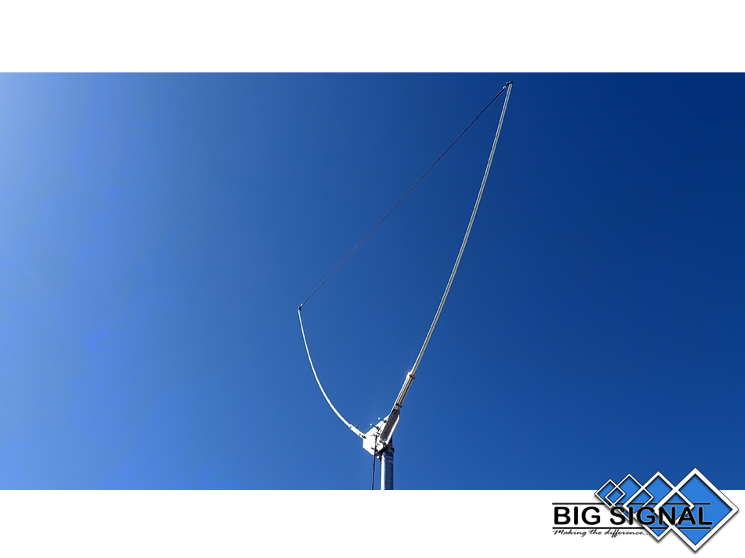

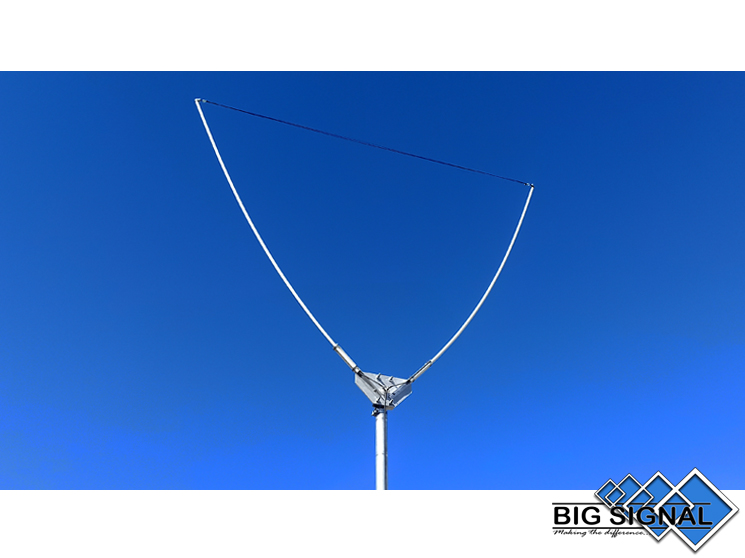

Introducing the BIG SIGNAL DL-6R Delta Loop antenna, the jewel in rigid inverted fiberglass format that will transform your DX communications on the magical 50 MHz band.
Highlighted features of the BIG SIGNAL DL-6R Delta Loop antenna:
· Elite DX Performance: Stand out in the new solar cycle 25 with this powerful bi-directional antenna. Hear the weakest DX stations thanks to its horizontal polarization, low radiation angle, and minimal noise reduction.
· Maximum Durability Construction: Innovative mechanical design with super-reinforced telescopic fibers, ensuring that this rigid Delta Loop will endure over time and exceed all expectations.
Why choose the BIG SIGNAL DL-6R Delta Loop antenna over traditional options like vertical antennas or dipoles?:
- Full Wavelength on 6 Meters: Achieve maximum performance and efficiency without the need for coils or tuning elements.
- Ultra-Low Noise: The closed-loop design attenuates QRN and urban noise, allowing you to enjoy exceptional clarity when receiving weak signals in the band.
- Very Low Radiation Angle: Maximize your communication capabilities, even when installed at low heights, to achieve a stronger signal on the other side.
- Guaranteed DX Superiority: Experience superior DX performance compared to renowned verticals, half-wave dipoles, and similar options.
- Super Robust Construction: Designed to withstand the most demanding conditions and last a lifetime.
- Plug & Play Installation: Configuration is simple and straightforward, with no need for complex adjustments after installation.
BIG SIGNAL: Where performance reaches its peak.
Get ready to elevate your communications to the next level on 50 MHz with the DL-6R!
Specifications:
· Band: 50 MHz.
· Active elements: 1

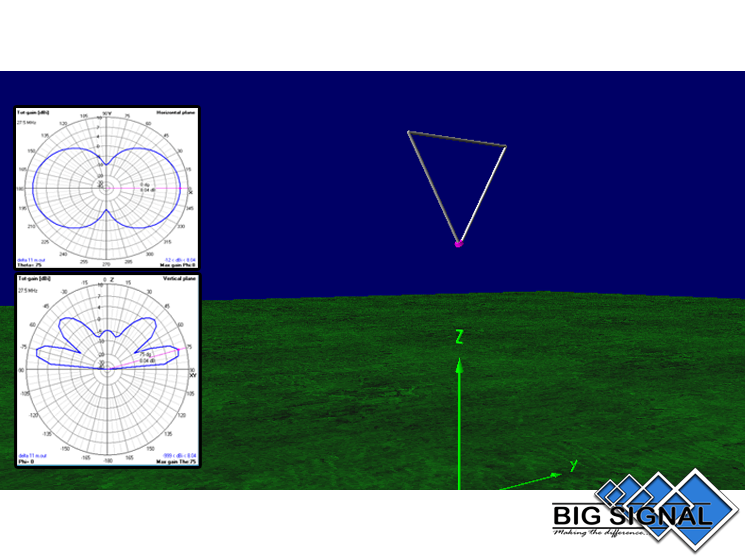

· Gain: 2,9 dBi (free space) | 8,5 dBi @6 m.

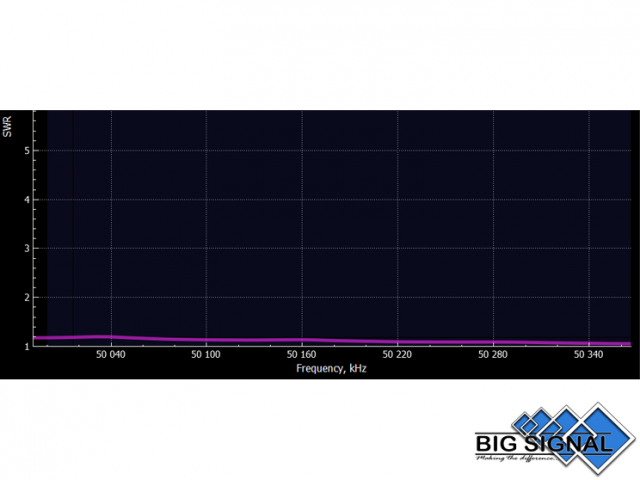

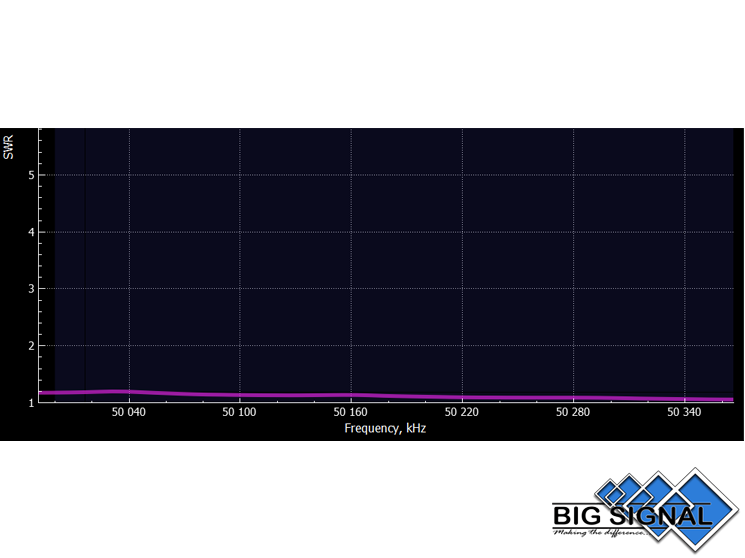

· SWR: 1,1:1 ~ 1,5:1.
· Power rating: 1.000 W. PEP
· Turning radius: 1,8 m. / 3,116 ft
· Total height: 1,90 m. / 6,233 ft
· Total width: 1,90 m. / 6,233 ft
· Weight: 2 Kg. / 4,40 lb
· Wind survival: > 150 Km/h. / 125 mph
· Wind load: 0,174 m2 | 136.59 N | @ 120 km/h.
Construction details:
· Plate to Mast: 250 x 150 x 6 mm.
· Element fastening: 20 x 3 mm angles.
· Hardware: Stainless Steel, W4 grade.
· Spreaders Arms: 14 x 7 mm tube.
· Cable: BIG SIGNAL - Wire. Special copper cable with polyethylene (PE) sheath for excellent weather protection and mechanical resistance.
· Feeding: N female.
La compra de los productos siempre se realiza por encargo. Nosotros fabricamos todos los productos, por lo que pueden añadirse tiempos de fabricación. Es por ello que el precio final de la compra, como el precio final de los gastos de envío se confirmarán en un email enviado a posteriori.
La forma de pago se realizará una vez recibido dicho email, por lo que en todo momento podrá cancelar el pedido informándonos del proceso.
ES
EN
After receiving the antenna, I was able to assemble it in about 30 minutes.
Then I had to wait until the weather was right so I could set up the antenna.
The antenna is located at approximately 730 m above sea level at a height of about 6 m (see photo).
Now I had to wait again for the band to open. On April 26th, the time finally came, and I noticed that the 6m band was open. Since I was QRVing on FT8 at the time, I immediately switched to the 6m band and saw various call signs. I also saw the call sign ZS6AYE from South Africa. I had no hope of being able to reach the OM on 6m with the antenna, but I tried anyway. After just two or three calls, I was able to complete the QSO and received a 73 from ZS6AYE
I was therefore positively surprised by the antenna and can only recommend it, as it is easy to install and has a stable construction.
